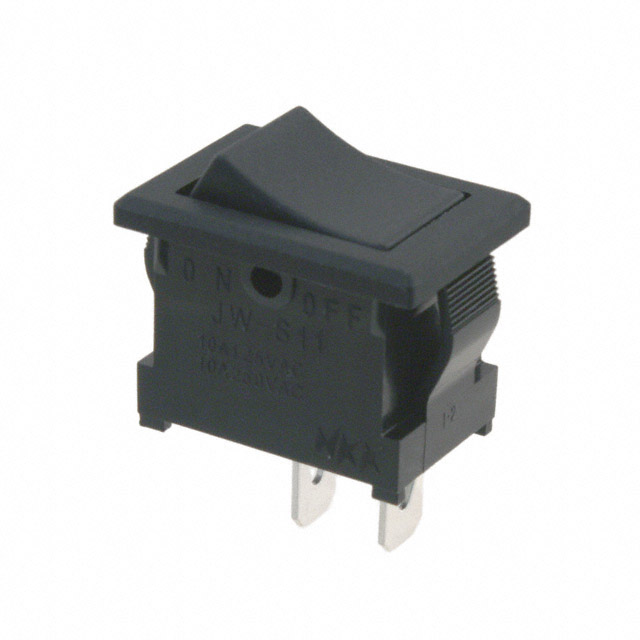

ROCKER SWITCH, NON ILLUMINATED, SPST, ON-NONE-OFF, BLACK, PANEL MOUNT, 10 A
Deep-Dive with AI
Search across all available documentation for this part.
JWS11RAA
ActiveNKK Switches
ROCKER SWITCH, NON ILLUMINATED, SPST, ON-NONE-OFF, BLACK, PANEL MOUNT, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JWS11RAA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL, VDE, CSA |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 6 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | Dust Proof |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 125 V |
JWS11R Series
| Part | Switch Function | Actuator Marking | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Ingress Protection | Mounting Type | Approval Agency | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Termination Style | Termination Style | Voltage Rating - AC | Mechanical Life | Current Rating (Amps) | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | On-Off | No Marking | Concave (Curved) | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 70 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Ivory | ||
NKK Switches | On-Off | No Marking | Concave (Curved) - Illuminated | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 50 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Black | Amber LED | 2 VDC |
NKK Switches | On-Off | No Marking | Concave (Curved) - Illuminated | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 50 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Red | Green LED | 2.1 VDC |
NKK Switches | On-Off | No Marking | Concave (Curved) | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 70 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Black | ||
NKK Switches | On-Off | No Marking | Concave (Curved) - Illuminated | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 50 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Red | Amber LED | 2 VDC |
NKK Switches | On-Off | No Marking | Concave (Curved) - Illuminated | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 50 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Black | Green LED | 2.1 VDC |
NKK Switches | On-Off | No Marking | Concave (Curved) - Illuminated | 12.9 mm | Rectangular | 19.2 mm | Dust Proof | Panel Mount Snap-In | CSA UL VDE | SPST | 50 °C | -25 °C | 10000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | 30000 Steps | 6 A | Black | LED Red | 1.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JWS11R Series
Rocker Switch SPST 6A (AC) 125 V Panel Mount, Snap-In
