C146 21R015 500 2

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZA10 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZA10 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C146 21R015 500 2

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	62.5 mm
Size / Dimension [x]	2.461 "
Size / Dimension [y]	1.161 "
Size / Dimension [y]	29.5 mm
Size / Dimension [z]	64.5 mm
Size / Dimension [z]	2.539 in
Style	Side Entry
Thread Size	M25

Part	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Ingress Protection	Size	Style	Connector Type	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Lock Location	Features	Size / Dimension [z]	Size / Dimension [y]
Amphenol Tuchel Industrial C146 21R015 804 2	100 °C	-40 °C	M25	IP65 - Dust Tight Water Resistant	A10	Bottom Entry	Hood - Coupling	Aluminum Alloy Die Cast	1.161 "	2.323 "	29.5 mm	2.461 "	62.5 mm	59 mm	Locking Clip (1) on Hood Top	Cable to Cable
Amphenol Tuchel Industrial C146 21R015 500 2	100 °C	-40 °C	M25	IP65 - Dust Tight Water Resistant	A10	Side Entry	Hood	Aluminum Alloy Die Cast	1.161 "	2.539 in		2.461 "	62.5 mm		Locking Clip (1) on Base Bottom		64.5 mm	29.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 18.13

General part information

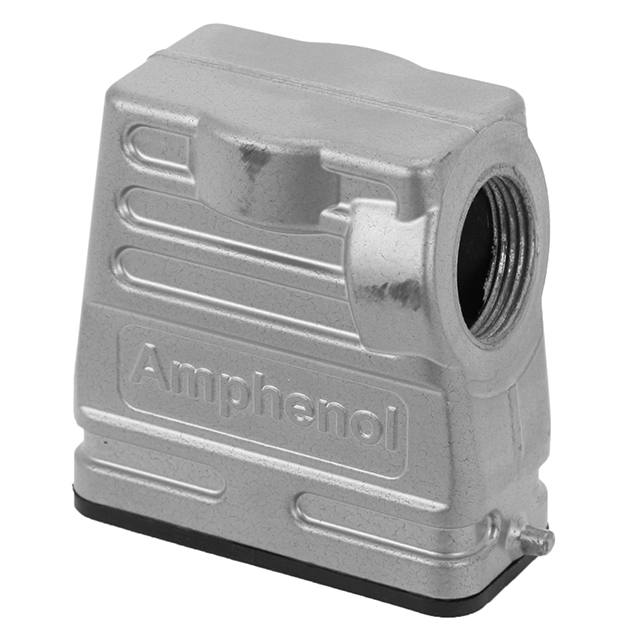

Hood Connector Side Entry M25 A10 IP65 - Dust Tight, Water Resistant
