Connectors, Interconnects

1-967622-6

Active

TE Connectivity Raychem Cable Protection

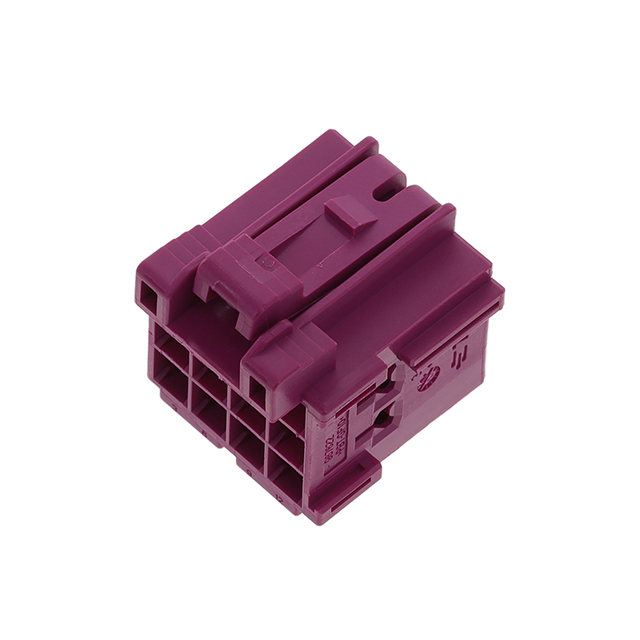

AUTOMOTIVE HOUSING, RECEPTACLE, 12POS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE HOUSING, RECEPTACLE, 12POS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	1-967622-6

Color	Purple
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	3
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	0.217 in
Row Spacing	5.5 mm

Part	Mounting Type	Color	Row Spacing [x]	Row Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Rows	Note	Connector Type	Number of Positions	Contact Type	Contact Termination	Insulation Material	Fastening Type	Row Spacing
TE Connectivity Raychem Cable Protection 1-967622-3	Free Hanging (In-Line)	Blue	0.217 in	5.51 mm	100 °C	-30 ░C	5 mm	0.197 in	3	Contacts Not Included	Receptacle	12	Female Socket	Crimp	Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity Raychem Cable Protection 1-967622-6	Free Hanging (In-Line)	Purple		5.5 mm	100 °C	-30 ░C	5 mm	0.197 in	3		Receptacle	12	Female Socket	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Purple 0.197" (5.00mm)
