3311-2.83-100

Active

3M (TC)

TAPE ALUM FOIL SILV 2.83"X100YD

Deep-Dive with AI

Search across all available documentation for this part.

3311-2.83-100

Active

3M (TC)

TAPE ALUM FOIL SILV 2.83"X100YD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3311-2.83-100

Adhesive	Rubber
Backing, Carrier	Aluminum Foil
Color	Silver
Length	91.4 m
Length	300 ft
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Aluminum Foil
Thickness - Adhesive	0.041 mm
Thickness - Adhesive	1.6 mils
Thickness - Adhesive	0.0016 "
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Width [y]	72 mm
Width [y]	2.83 "

3311 Series

Part	Color	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life	Tape Type	Length	Length	Shelf Life Start	Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [y]	Width [y]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length [x]	Length [x]
3M (TC) 3M 3311 2.83" X 6"-25	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	152.4 mm	6 in	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	72 mm	2.83 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3311-2-100	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	91.4 m	300 ft	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	50.8 mm	2 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3M 3311 2.83" X 10.5"-25	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	266.7 mm	10.5 in	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	72 mm	2.83 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3311-2-3(50)	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	76.2 mm		Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	50.8 mm	2 "	16 °C 60 °F	27 °C 80 °F	3 in
3M (TC) 3M 3311 2" X 8.625"-25	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	219.08 mm	8.63 in	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	50.8 mm	2 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3M 3311 2.83" X 9.25"-25	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	234.95 mm	9.25 inches	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	72 mm	2.83 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3M 3311 2" X 4"-25	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil			Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	50.8 mm	2 "	16 °C 60 °F	27 °C 80 °F	4 "	101.6 mm
3M (TC) 3311-2.83-100	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	91.4 m	300 ft	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	72 mm	2.83 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3M 3311 2" X 6"-25	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	152.4 mm	6 in	Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	50.8 mm	2 "	16 °C 60 °F	27 °C 80 °F
3M (TC) 3311-2.83-3(25)	Silver	Rubber	0.041 mm	1.6 mils	0.0016 "	12 Months	Aluminum Foil	76.2 mm		Date of Manufacture	Aluminum Foil	0.002 "	0.051 mm	2 mils	72 mm	2.83 "	16 °C 60 °F	27 °C 80 °F	3 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 101.29

Description

General part information

3311 Series

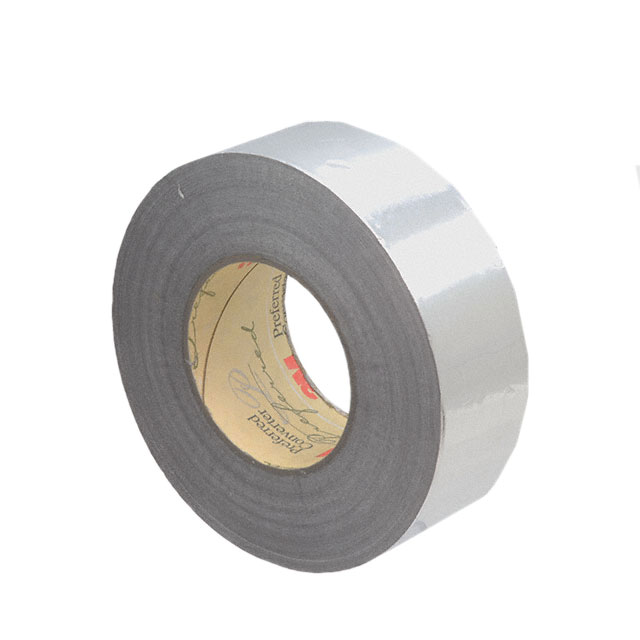

Aluminum Foil Tape Rubber Adhesive Silver 2.83" (72.00mm) X 300' (91.4m) 100 yds

Documents

Technical documentation and resources

No documents available
