M40-3021046

Obsolete

Harwin Inc.

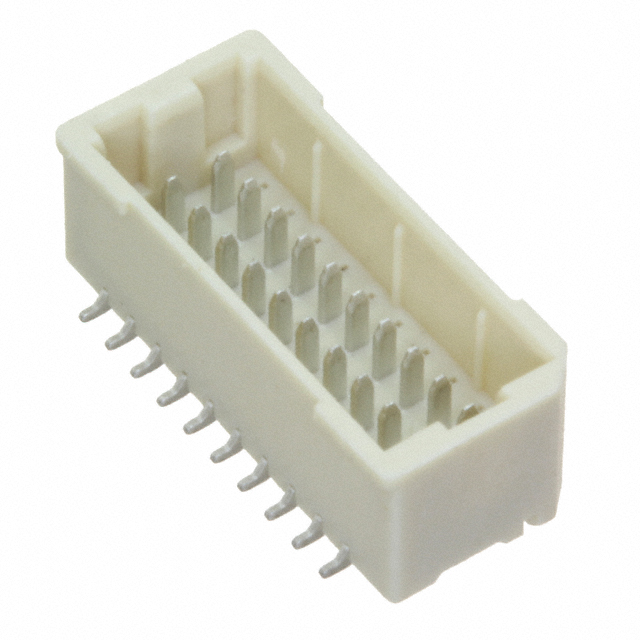

CONN HEADER SMD 20POS 1MM

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN HEADER SMD 20POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	M40-3021046

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Cream
Insulation Height	0.171 in
Insulation Height	4.35 mm
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Type	Insulation Color	Features	Connector Type	Termination	Material Flammability Rating	Number of Rows	Fastening Type	Contact Shape	Number of Positions Loaded	Style	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shrouding	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Post
Harwin Inc. M40-3021046	0.039 in	1 mm	50 V	Male Pin	Cream	Board Guide Pick and Place Solder Retention	Header	Solder	UL94 V-0	2	Detent Lock	Rectangular	All	Board to Cable/Wire	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount	-25 °C	85 °C	Copper Alloy	Shrouded - 4 Wall	20	0.171 in	4.35 mm	Tin
