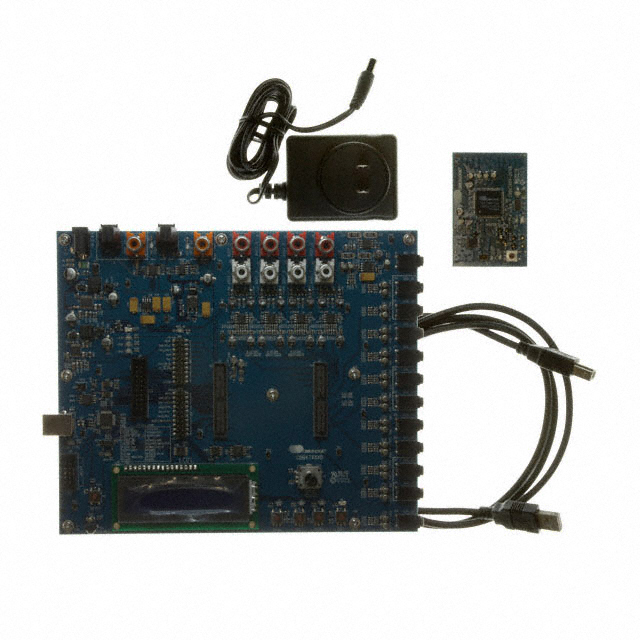

CDB470XD-DC48

Cirrus Logic Inc.

EVAL BD - DF 4CH ADC 8CH DAC & 32BIT DSP

Search across all available documentation for this part.

Cirrus Logic Inc.

EVAL BD - DF 4CH ADC 8CH DAC & 32BIT DSP

Technical Specifications

Parameters and characteristics commom to parts in this series

BOARD EVAL 2CH ADC/8CH DAC DSP

Part	Contents	Function	Secondary Attributes	Utilized IC / Part	Primary Attributes	Type	Supplied Contents	Primary Attributes [custom]	Primary Attributes [custom]
Cirrus Logic Inc. CDB470XS-DC28	Board(s)	Audio Processing	Single-Ended	CS47028	2 Inputs, 8 LDOs	Audio	Board(s)
Cirrus Logic Inc. CDB470XD-DC24	Board(s)	Audio Processing	Differential	CS47024		Audio	Board(s)	2	4
Cirrus Logic Inc. CDB470XS-DC24	Board(s)	Audio Processing	Single-Ended	CS47024		Audio	Board(s)	2	4
Cirrus Logic Inc. CDB470XS-DC48	Board(s)	Audio Processing	Single-Ended	CS47048	4, 8 LDOs	Audio	Board(s)
Cirrus Logic Inc. CDB470XD-DC48	Board(s)	Audio Processing	Differential	CS47048	4, 8 LDOs	Audio	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 483.60

General part information

CS47048 Crystal® Audio Processing Audio Evaluation Board
