1320C SL001

Active

ALPHA WIRE

MULTI-PAIR 10COND 22AWG 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 10COND 22AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1320C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.34 mm
Jacket (Insulation) Diameter [diameter]	0.289 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 10COND 22AWG 1000'

Part	Length	Length	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Voltage	Conductor Material	Number of Conductors	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Usage	Jacket Color
ALPHA WIRE 1320C SL001	1000 ft	304.8 m	Multi-Pair	7.34 mm	0.289 in	7	30 AWG	Poly-Vinyl Chloride (PVC)	300 V	Copper, Tinned	10	Poly-Vinyl Chloride (PVC)	-20 C	80 C	22 AWG	Communication, Control	Slate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1583.93
LCSC	Piece	1	$ 587.07

General part information

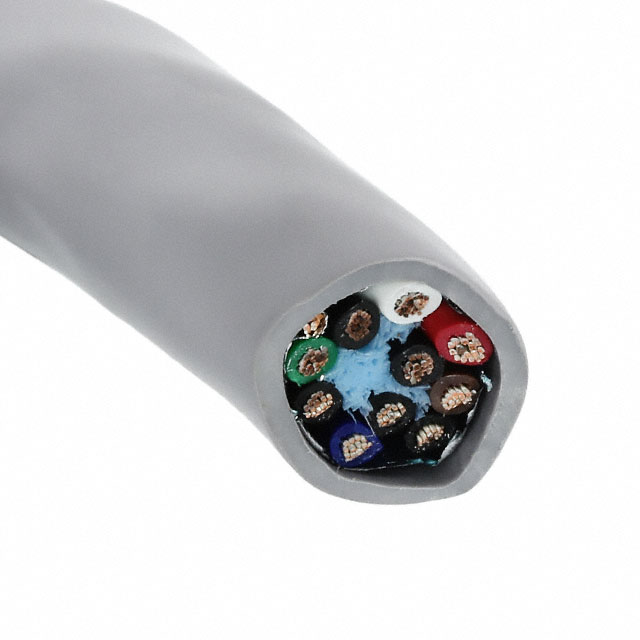

10 (5 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 1000.0' (304.8m)
