FFE.0S.250.CLAC32Z

Active

LEMO

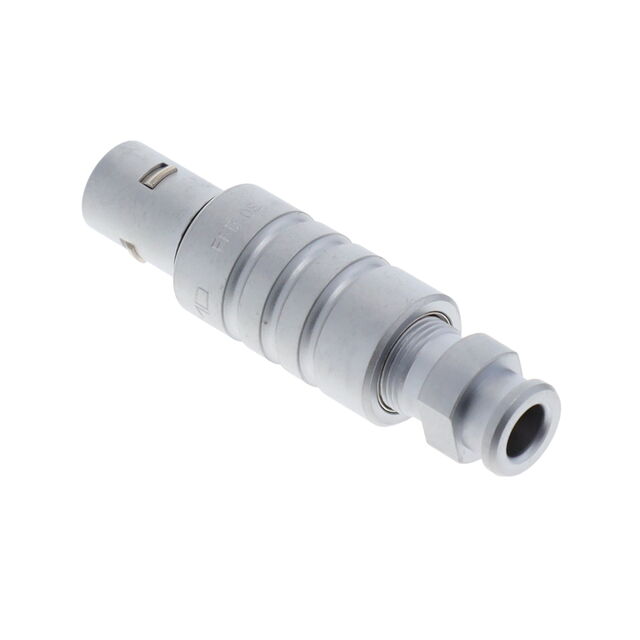

CONN INLINE PLUG 1PIN SLD CUP

Search across all available documentation for this part.

Active

LEMO

CONN INLINE PLUG 1PIN SLD CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FFE.0S.250.CLAC32Z	FFE.0S Series

Backshell Material, Plating	-	Brass, Chrome
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	178, RG-174	178, RG-174
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	Triaxial	Triaxial
Connector Type	Male Pin, Plug	Male Pins, Plug, Female Sockets, Male Pin
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder	Solder
Current Rating (Amps)	-	7 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP54 - Dust Protected, Water Resistant, IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Number of Positions	-	4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	304
Shield Termination	Clamp	Clamp
Shielding	-	Shielded

CONN CIRC PLUG 4P GOLD SLDR CUP

Part	Orientation	Shell Material	Contact Material	Current Rating (Amps)	Backshell Material, Plating	Shielding	Mounting Type	Insert Material	Shell Size - Insert	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Primary Material	Fastening Type	Shell Finish	Connector Type	Contact Finish - Mating	Ingress Protection	Material Flammability Rating	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Housing Color	Center Contact Plating	Body Material	Number of Ports	Mating Cycles	Center Contact Material	Connector Style	Cable Group	Dielectric Material	Contact Termination	Shield Termination	Body Finish
LEMO FFE.0S.304.CLAC42Z	Keyed	Brass	Brass, Bronze	7 A	Brass, Chrome	Shielded	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	304	Silver	0.126 in	4.2 mm	0.165 in	3.2 mm	Metal	Push-Pull	Chrome	Female Sockets, Male Pins, Plug	Gold	IP54 - Dust Protected, Water Resistant	UL94 V-0	4	Backshell	-55 °C	250 °C
LEMO FFE.0S.250.CLAC32Z							Free Hanging (In-Line)									Push-Pull		Male Pin, Plug		IP50				-55 °C	250 °C	50 Ohms	Silver	Gold	Brass	1	1000	Brass	Triaxial	178, RG-174	Polytetrafluoroethylene (PTFE)	Solder	Clamp	Chrome
