EN2P5F26

Active

Switchcraft Inc.

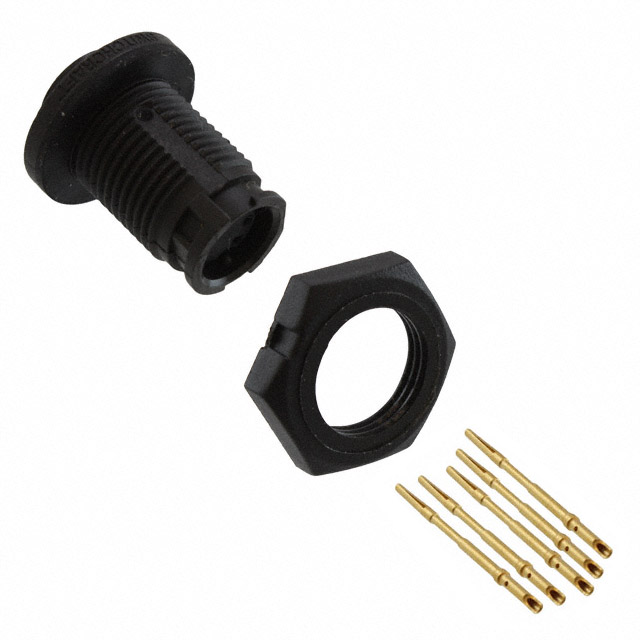

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 5POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.67

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN2P5F26	EN2P5F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup, Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Connector Type	Mounting Feature	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Orientation	Contact Material	Applications	Ingress Protection	Contact Finish - Mating	Fastening Type	Shielding	Voltage Rating	Insert Material	Color	Primary Material	Mounting Type
Switchcraft Inc. EN2P5F26	Receptacle, Female Sockets	Bulkhead - Front Side Nut	UL94 V-0	85 °C	-40 °C	Crimp, Solder Cup	Keyed	Copper Alloy	Communication Systems, Industrial, Marine, Medical	IP66, IP67, IP68	Gold	Bayonet Lock	Unshielded	125 VAC	Elastomer	Black	Plastic
Switchcraft Inc. EN2P5F26P	Receptacle, Female Sockets	Bulkhead - Front Side Nut	UL94 V-0	85 °C	-40 °C	Solder	Keyed	Copper Alloy	Communication Systems, Industrial, Marine, Medical	IP66, IP67, IP68	Gold	Bayonet Lock	Unshielded	125 VAC	Elastomer	Black	Plastic	Panel Mount, Through Hole
