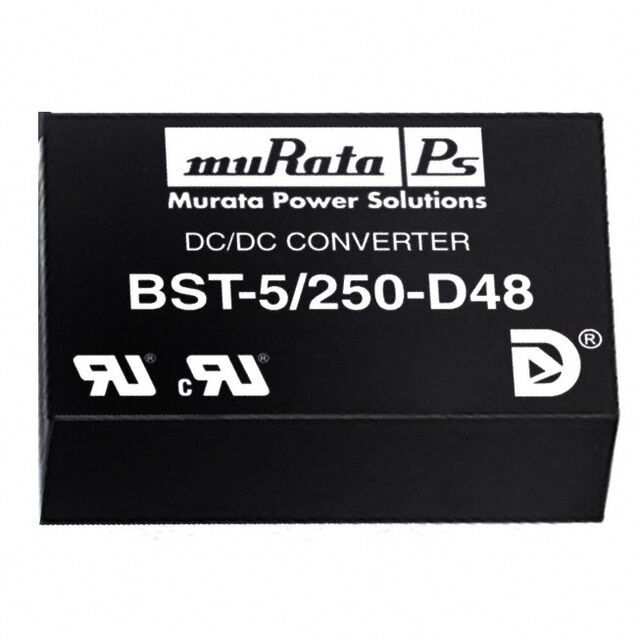

BST-5/250-D48-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BST-5/250-D48-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BST-5/250-D48-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 250 mA |
| Current - Output (Max) | 250 mA |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.45 " |
| Size / Dimension [z] | 11.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BST-5 Series
DC DC CONVERTER +/-5V 3W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Applications | Number of Outputs | Type | Voltage - Output 2 | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Power (Watts) | Mounting Type | Voltage - Isolation | Voltage - Input (Min) [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BST-5/250-D48-C | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | 76 % | ITE (Commercial) | 2 | Isolated Module | -5 V | 8-DIP Module | -40 °C | 75 ░C | 5 V | 3 W | Through Hole | 1000 V | 18 V | 250 mA | 250 mA | 72 V |
Description
General part information
BST-5 Series
Isolated Module DC DC Converter 2 Output 5V -5V 250mA, 250mA 18V - 72V Input
