C4D0312N-A
ActiveELECTROSWITCH
ROTARY SWITCH, 12 POSITION, 3 POLE, 30 °, 300 MA, 125 V, C4 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
C4D0312N-A
ActiveELECTROSWITCH
ROTARY SWITCH, 12 POSITION, 3 POLE, 30 °, 300 MA, 125 V, C4 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C4D0312N-A |
|---|---|
| Actuator Length [x] | 0.5 in |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP12T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 300 mA, 500 mA |
| Depth Behind Panel [z] | 34.54 mm |
| Index Stops | Adjustable |
| Number of Decks | 3 |
| Number of Poles per Deck | 1 |
| Number of Positions [Max] | 12 |
| Number of Positions [Min] | 2 |
| Panel Cutout Dimensions [diameter] | 9.78 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C4D0312 Series

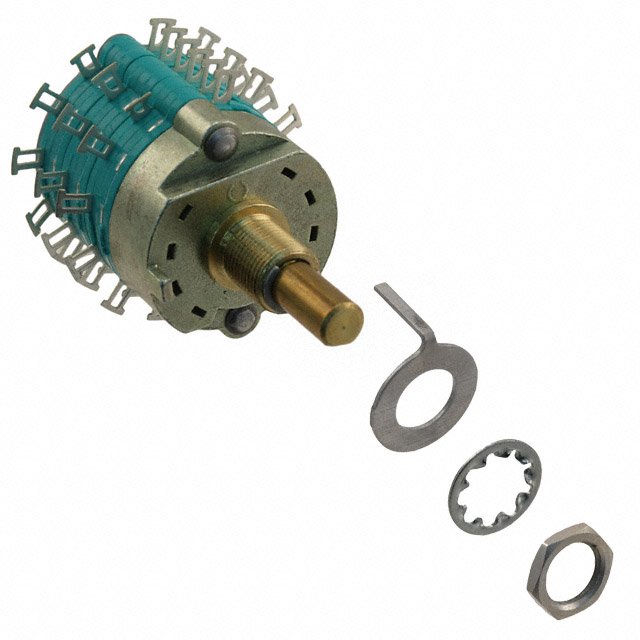

The C4D0312N-A is a three-pole twelve-throw (3P12T) Rotary Switch with diallyl phthalate insulation, brass with silver plate as standard terminals and contacts. The C4 series provides a versatile, fully enclosed design that helps keep dirt and moisture out of the contact area while locking in life time lubricants.
