140-507-415-101

Active

EDAC Inc.

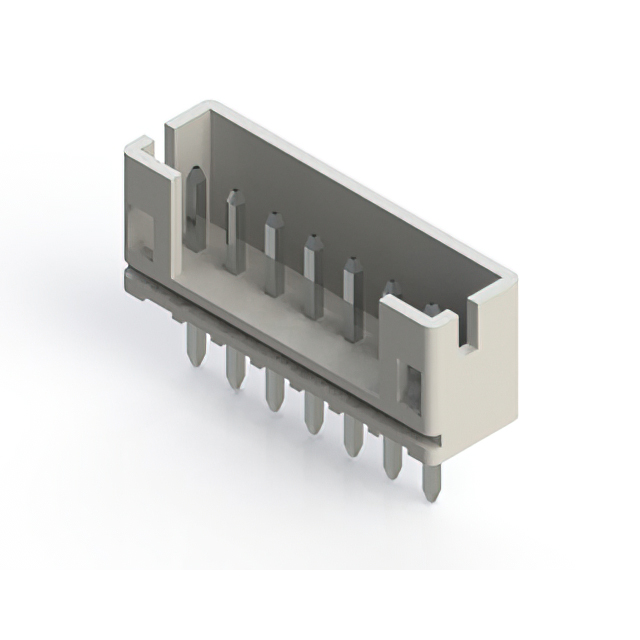

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 7 CONTACTS, THROUGH HOLE STRAIGHT, 140 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

140-507-415-101

Active

EDAC Inc.

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 7 CONTACTS, THROUGH HOLE STRAIGHT, 140 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.11
Newark	Each	1000	$ 0.12
		2500	$ 0.10

Description

General part information

140-507 Series

Connector Header Through Hole 7 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-507-415-101	140-507 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.185 - 0.24 in
Insulation Height	6.1 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole, Surface Mount, Right Angle, Free Hanging (In-Line), Surface Mount
Note	-	Contacts Not Included
Number of Positions	7	7
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Kinked Pin, Solder, Solder
Voltage Rating	100 VAC	100 VAC

140-507 Series

2.0MM PITCH CONNECTOR WITH 7 P.C

Part	Material Flammability Rating	Number of Positions Loaded	Contact Type	Contact Shape	Mounting Type	Insulation Material	Current Rating (Amps)	Number of Positions	Number of Rows	Connector Type	Fastening Type	Shrouding	Termination	Voltage Rating	Insulation Color	Insulation Height	Insulation Height	Style	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Features	Note	Color	Contact Termination	Pitch [x]	Pitch [x]
EDAC Inc. 140-507-415-000	UL94 V-0	All	Male Pin	Square	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	2 A	7	1	Header	Detent Lock	Shrouded - 4 Wall	Kinked Pin, Solder	100 VAC	Natural	0.197 in	5 mm	Board to Cable/Wire	Tin	-40 °C	105 ░C	Brass	0.079 in	2 mm
EDAC Inc. 140-507-415-001	UL94 V-0	All	Male Pin	Square	Through Hole	Polyamide (PA66), Nylon 6/6	2 A	7	1	Header	Detent Lock	Shrouded - 4 Wall	Kinked Pin, Solder	100 VAC	Natural	0.24 in	6.1 mm	Board to Cable/Wire	Tin	-40 °C	105 ░C	Brass	0.079 in	2 mm
EDAC Inc. 140-507-415-100	UL94 V-0	All	Male Pin	Square	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	2 A	7	1	Header	Detent Lock	Shrouded - 4 Wall	Solder	100 VAC	Natural	0.185 in	4.7 mm	Board to Cable/Wire	Tin	-40 °C	105 ░C	Brass	0.079 in	2 mm	0.134 in	3.4 mm
EDAC Inc. 140-507-415-101	UL94 V-0	All	Male Pin	Square	Through Hole	Polyamide (PA66), Nylon 6/6	2 A	7	1	Header	Detent Lock	Shrouded - 4 Wall	Solder	100 VAC	Natural	0.24 in	6.1 mm	Board to Cable/Wire	Tin	-40 °C	105 ░C	Brass	0.079 in	2 mm
EDAC Inc. 140-507-417-060	UL94 V-0	All	Male Pin	Square	Surface Mount, Right Angle	Nylon 9T, Polyamide (PA9T)	2 A	7	1	Header	Detent Lock	Shrouded - 4 Wall	Solder	100 VAC	Natural			Board to Cable/Wire	Tin	-25 °C	85 °C	Brass	0.079 in	2 mm			5.51 mm	0.217 in	Solder Retention
EDAC Inc. 140-507-210-011			Female Socket		Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6		7	1	Receptacle	Detent Lock									-25 °C	85 °C								Polarizing Key	Contacts Not Included	Natural	Crimp	0.079 in	2 mm
EDAC Inc. 140-507-417-011	UL94 V-0	All	Male Pin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	2 A	7	1	Header	Detent Lock	Shrouded - 4 Wall	Solder	100 VAC	Natural			Board to Cable/Wire	Tin	-40 °C	105 ░C	Brass	0.079 in	2 mm			5.51 mm	0.217 in	Solder Retention
