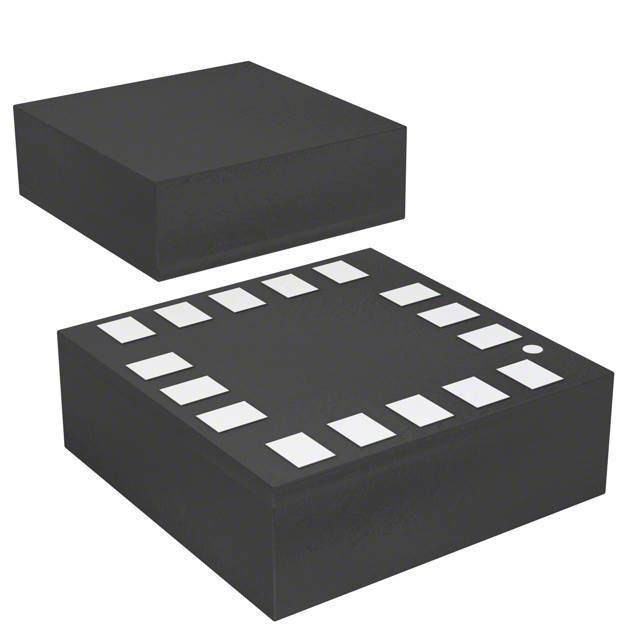

LPS331APTR

Obsolete

STMicroelectronics

SENSOR 18.27PSIA 24BIT 16HCLGA

Search across all available documentation for this part.

Obsolete

STMicroelectronics

SENSOR 18.27PSIA 24BIT 16HCLGA

Technical Specifications

Parameters and characteristics for this part

Part	Output	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Mounting Type	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Accuracy	Accuracy	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Package / Case	Termination Style	Supplier Device Package
STMicroelectronics LPS331APTR	24 b	Board Mount	85 °C	-40 °C	No Port	Surface Mount	I2C SPI	290.08 PSI	2000 kPa	3.6 V	1.7 V	Temperature Compensated	0.02 kPa	0.003 PSI	26 kPa	18.27 PSI	126 kPa	3.77 PSI	16-VFLGA	SMD (SMT) Tab	16-HCLGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) Absolute 24 b 16-VFLGA
