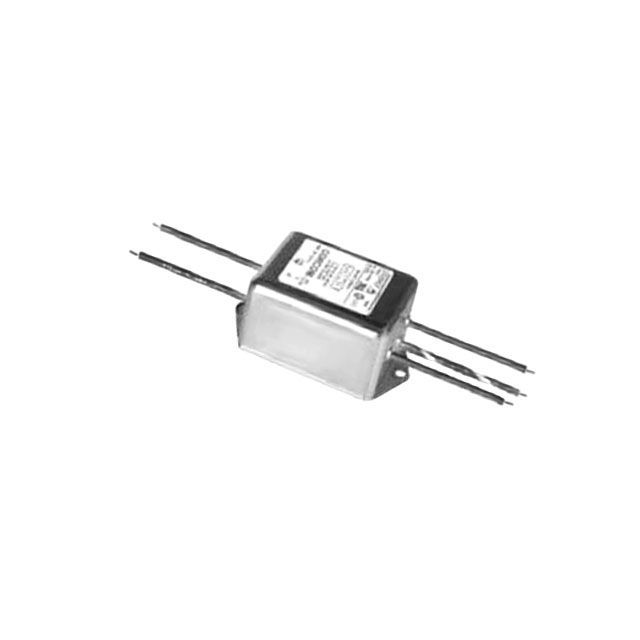

10ESK3
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
10ESK3
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10ESK3 | 10E Series |
|---|---|---|
| Accomodates a Fuse | - | False |
| Applications | General Purpose | General Purpose |
| Approval Agency | VDE, CSA, UR | VDE, CSA, UR, UL |
| Configuration | Single Stage | Single Stage, Two Stage |
| Connector Style | - | IEC 320-C14 |
| Connector Type | - | Male Blades, Receptacle |
| Current | 10 A | 10 A |
| Current Rating - Appliance Inlet | - | 10 A |
| Current Rating - Filter | - | 10 A |
| Features | - | Front or Rear Side Mount |
| Filter Type | Single Phase | Single Phase, Filtered (EMI, RFI) - Commercial |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | 7.13 mH | 7.13 - 990 µH |
| Mounting Type | Chassis Mount | Chassis Mount, Panel Mount, Flange |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Panel Cutout Dimensions | - | Variable Size |
| Panel Cutout Dimensions | - | 20.83 mm |
| Panel Cutout Dimensions | - | 30.48 mm |
| Termination | - | 0.25 in |
| Termination | - | 6.3 mm |
| Termination | - | Quick Connect |
| Termination Style | Wire Leads | Quick Connect, Wire Leads, Threaded Post (8-32), IEC 320-C14 |
| Voltage - Rated AC | 250 V | 250 V |
| Voltage Rating - Appliance Inlet | - | 250 VAC |
| Voltage Rating - Appliance Inlet | - | 120 VAC |
10E Series
LINE FILTER 250VAC 10A CHASS MNT
| Part | Configuration | Voltage - Rated AC | Frequency - Operating [Max] | Frequency - Operating [Min] | Current | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Filter Type | Termination Style | Applications | Inductance | Mounting Type | Connector Type | Current Rating - Filter | Accomodates a Fuse | Connector Style | Termination | Termination | Termination | Voltage Rating - Appliance Inlet [Max] | Voltage Rating - Appliance Inlet [Min] | Panel Cutout Dimensions | Current Rating - Appliance Inlet | Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 10EB1 | Single Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | Quick Connect | General Purpose | 495 µH | Chassis Mount | ||||||||||||||
TE Connectivity Corcom Filters 10ESK3 | Single Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | Wire Leads | General Purpose | 7.13 mH | Chassis Mount | ||||||||||||||
TE Connectivity Corcom Filters 10EMC6 | Two Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | Threaded Post (8-32) | General Purpose | Chassis Mount | |||||||||||||||
TE Connectivity Corcom Filters 10ESK7 | Single Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | IEC 320-C14, Quick Connect | General Purpose | 7.13 mH | Chassis Mount | ||||||||||||||
TE Connectivity Corcom Filters 10EJT1F | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | Male Blades, Receptacle | 10 A | IEC 320-C14 | 0.25 in | 6.3 mm | Quick Connect | |||||||||||||||||||
TE Connectivity Corcom Filters 10EP1 | Two Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | Quick Connect | General Purpose | Chassis Mount | |||||||||||||||
TE Connectivity Corcom Filters 10EC1 | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | Male Blades, Receptacle | 10 A | IEC 320-C14 | 0.25 in | 6.3 mm | Quick Connect | 250 VAC | 120 VAC | Variable Size | 10 A | Front or Rear Side Mount | |||||||||||||
TE Connectivity Corcom Filters 10ER7 | Two Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | IEC 320-C14, Quick Connect | General Purpose | 990 µH | Chassis Mount | ||||||||||||||
TE Connectivity Corcom Filters 10EDK1 | Single Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | Quick Connect | General Purpose | 495 µH | Chassis Mount | ||||||||||||||
TE Connectivity Corcom Filters 10EH1 | Single Stage | 250 V | 60 Hz | 50 Hz | 10 A | -10 °C | 40 °C | CSA, UR, VDE | Single Phase | Quick Connect | General Purpose | 360 µH | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.69 | |
Description
General part information
10E Series
Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Single Stage Wire Leads
