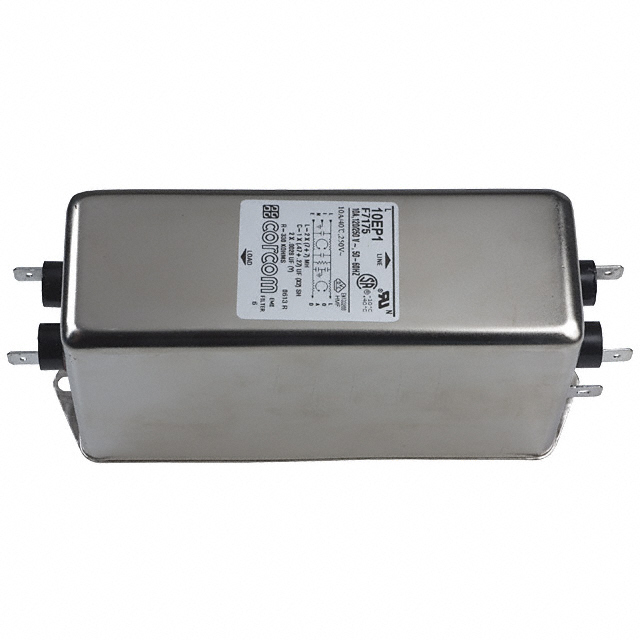

10EP1

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 250VAC 10A CHASS MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

10EP1

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 250VAC 10A CHASS MNT

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10E Series

Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Two Stage Quick Connect

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10EP1	10E Series

Accomodates a Fuse	-	False
Applications	General Purpose	General Purpose
Approval Agency	VDE, CSA, UR	VDE, CSA, UR, UL
Configuration	Two Stage	Single Stage, Two Stage
Connector Style	-	IEC 320-C14
Connector Type	-	Male Blades, Receptacle
Current	10 A	10 A
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	10 A
Features	-	Front or Rear Side Mount
Filter Type	Single Phase	Single Phase, Filtered (EMI, RFI) - Commercial
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	7.13 - 990 µH
Mounting Type	Chassis Mount	Chassis Mount, Panel Mount, Flange
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Panel Cutout Dimensions	-	Variable Size
Panel Cutout Dimensions	-	20.83 mm
Panel Cutout Dimensions	-	30.48 mm
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect	Quick Connect, Wire Leads, Threaded Post (8-32), IEC 320-C14
Voltage - Rated AC	250 V	250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - Appliance Inlet	-	120 VAC

10E Series

LINE FILTER 250VAC 10A CHASS MNT

Part	Configuration	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Filter Type	Termination Style	Applications	Inductance	Mounting Type	Connector Type	Current Rating - Filter	Connector Style	Termination	Termination	Termination	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Features
TE Connectivity Corcom Filters 10EB1	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose	495 µH	Chassis Mount
TE Connectivity Corcom Filters 10ESK3	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Wire Leads	General Purpose	7.13 mH	Chassis Mount
TE Connectivity Corcom Filters 10EMC6	Two Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Threaded Post (8-32)	General Purpose		Chassis Mount
TE Connectivity Corcom Filters 10ESK7	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	IEC 320-C14, Quick Connect	General Purpose	7.13 mH	Chassis Mount
TE Connectivity Corcom Filters 10EJT1F									Filtered (EMI, RFI) - Commercial				Flange, Panel Mount	Male Blades, Receptacle	10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
TE Connectivity Corcom Filters 10EP1	Two Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose		Chassis Mount
TE Connectivity Corcom Filters 10EC1								CSA, UL, VDE	Filtered (EMI, RFI) - Commercial				Flange, Panel Mount	Male Blades, Receptacle	10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	250 VAC	120 VAC	Variable Size	10 A	Front or Rear Side Mount
TE Connectivity Corcom Filters 10ER7	Two Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	IEC 320-C14, Quick Connect	General Purpose	990 µH	Chassis Mount
TE Connectivity Corcom Filters 10EDK1	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose	495 µH	Chassis Mount
TE Connectivity Corcom Filters 10EH1	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose	360 µH	Chassis Mount
