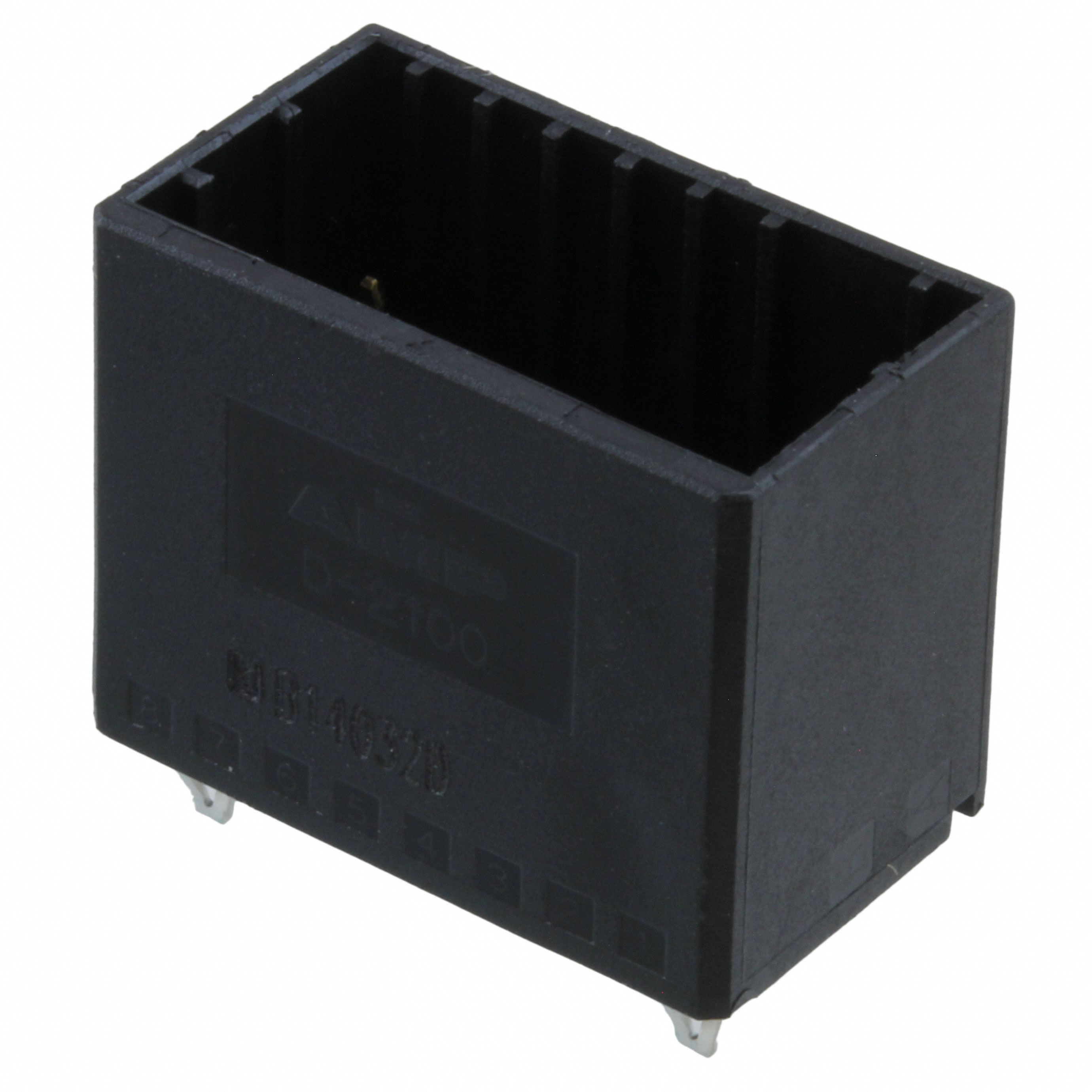

1-1747994-1

Active

TE Connectivity Raychem Cable Protection

DYNAMIC D-2100 V-HDR ASS Y 16P X-KEY SEQ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

1-1747994-1

Active

TE Connectivity Raychem Cable Protection

DYNAMIC D-2100 V-HDR ASS Y 16P X-KEY SEQ

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1747994-1

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	5 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	17.78 mm
Insulation Height	0.7 in
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	0.148 in
Row Spacing - Mating	3.75 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

Dynamic 2000 Series Series

Headers & Wire Housings D2970 HDR 180 DEGREE 3POSN 1ROW Sn

Part	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Current Rating (Amps)	Shrouding	Number of Positions Loaded	Style	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Termination	Contact Material	Contact Finish - Post	Insulation Material	Voltage Rating	Applications	Connector Type	Contact Type	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Shape	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Contact Termination	Note	Color	Number of Positions	Features	Row Spacing	Row Spacing	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
TE Connectivity Raychem Cable Protection 1376135-2	3.33 mm	0.131 "	UL94 V-0	5 A	Shrouded - 4 Wall	All	Board to Board Cable	Gold	105 ░C	-55 °C	1	Solder	Copper Alloy	Tin	Glass Filled Polyester Thermoplastic	250 VDC	General Purpose Industrial	Header	Tab	Black	Detent Lock	15 µin	0.38 µm	2.5 mm	0.098 in	Through Hole Right Angle	Rectangular	0.431 in	10.95 mm
TE Connectivity Raychem Cable Protection 2-2336491-3
TE Connectivity Raychem Cable Protection 1-1318114-6									105 ░C	-55 °C	2				Glass Filled Polyester Thermoplastic			Plug	Male Pin							Panel Mount Snap-In				0.098 in	2.5 mm	Crimp	Contacts Not Included	Black	12	Polarizing Key
TE Connectivity Raychem Cable Protection 2-1717834-4									105 ░C	-55 °C	2				Polyester Glass Filled			Receptacle	Female Socket		Locking Ramp					Free Hanging (In-Line)				0.098 in	2.5 mm	Crimp	Contacts Not Included	Black	8		0.148 in	3.75 mm
TE Connectivity Raychem Cable Protection 2336494-4	2.6 mm	0.102 in			Shrouded - 4 Wall	All	Board to Cable/Wire		105 ░C	-55 °C	1	Solder	Copper Alloy	Tin	Liquid Crystal Polymer (LCP)	300 VDC		Header	Male Pin	Black	Push-Pull	39.4 µin	1 µm	5 mm	0.197 "	Through Hole	Rectangular	0.583 in	14.8 mm						4				Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 1-1747994-1			UL94 V-0	5 A	Shrouded - 4 Wall	All	Board to Board Cable	Gold	105 ░C	-55 °C	2	Solder	Copper Alloy	Tin	Glass Filled Polyester Thermoplastic	250 VDC	General Purpose Industrial	Header	Tab	Black	Detent Lock	15 µin	0.38 µm	2.5 mm	0.098 in	Through Hole	Rectangular	0.7 in	17.78 mm											0.148 in	3.75 mm	0.134 in	3.4 mm	16
TE Connectivity Raychem Cable Protection 1-2331743-4
TE Connectivity Raychem Cable Protection 9-1318118-8									105 ░C	-55 °C	2				Polyester Glass Filled			Receptacle	Male Pin							Free Hanging (In-Line)				0.098 in	2.5 mm	Crimp	Contacts Not Included	Natural			0.148 in	3.75 mm						16
TE Connectivity Raychem Cable Protection 1-1318115-4									105 ░C	-55 °C	2				Glass Filled Polyester Thermoplastic			Plug	Male Pin		Locking Ramp					Free Hanging (In-Line)				0.098 in	2.5 mm	Crimp	Contacts Not Included	Black	8	Polarizing Key
TE Connectivity Raychem Cable Protection 1-1473074-3									105 ░C	-55 °C	1				Glass Filled Polyester Thermoplastic			Receptacle	Female Socket							Free Hanging (In-Line)				0.098 in	2.5 mm	Crimp	Contacts Not Included	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2520	$ 3.45
Newark	Each	500	$ 3.70
