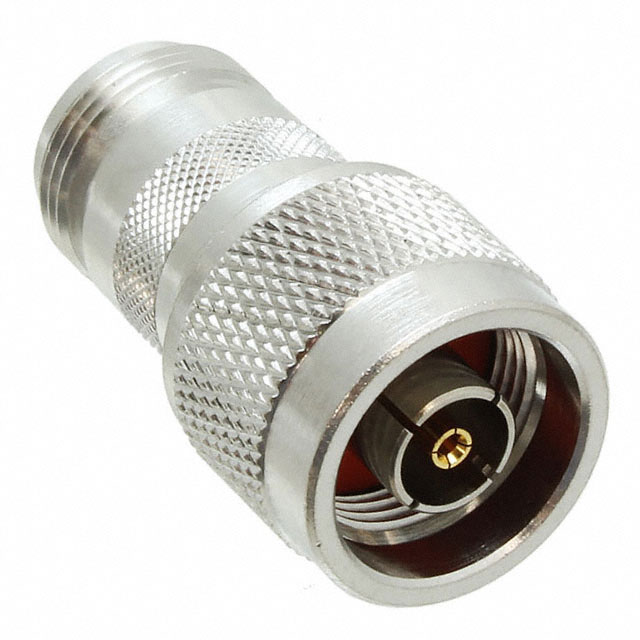

172212RP

Active

Amphenol RF

RF / COAXIAL ADAPTER, N, JACK, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL ADAPTER, N, JACK, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	172212RP

Adapter Series	RP-N to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	RP-N Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mounting Type	Convert From (Adapter End)	Body Material	Adapter Type	Impedance	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Adapter Series	Conversion Type	Center Contact Material	Style	Center Gender	Frequency - Max [Max]	Body Finish
Amphenol RF 172212RP	Free Hanging (In-Line)	Female Socket N Jack	Brass	Plug to Jack	50 Ohms	Gold	Female Socket RP-N Plug	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RP-N to N	Between Series	Phosphor Bronze	Straight	Female to Female	11 GHz	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 13.34
Newark	Each	100	$ 14.73

General part information

Adapter Coaxial Connector N Jack, Female Socket To RP-N Plug, Female Socket 50 Ohms
