LY3100ALH
ObsoleteSTMicroelectronics
GYRO 1000DEG/S 1.1MV 140HZ 10LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY3100ALH
ObsoleteSTMicroelectronics
GYRO 1000DEG/S 1.1MV 140HZ 10LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY3100ALH |
|---|---|
| Axis | X (Pitch) |
| Bandwidth | 140 Hz |
| Current - Supply | 4.2 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |

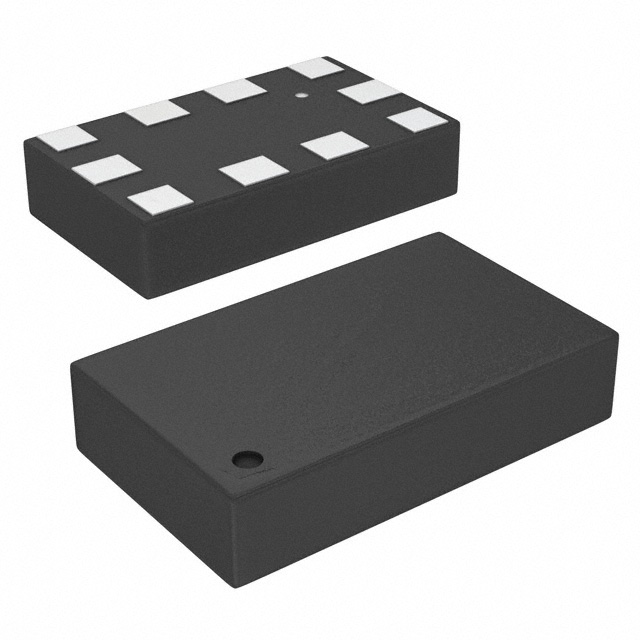

| Package / Case | 10-TLGA |
| Range °/s | 1000 °/s |
| Sensitivity (mV/°/s) | 1.1 mV/°/s |
| Type | Analog |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LY3100 Series
Gyroscope X (Pitch) ±1000 140Hz Analog Voltage 10-LGA (3x5)
