AIS18N08RW220-2M

Active

Altech Corporation

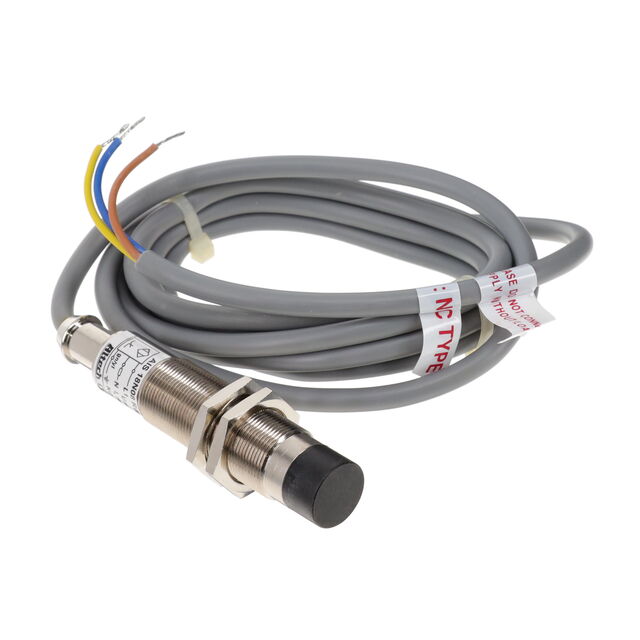

SENSOR PROX INDUCTIVE 8MM CYLIND

Deep-Dive with AI

Search across all available documentation for this part.

AIS18N08RW220-2M

Active

Altech Corporation

SENSOR PROX INDUCTIVE 8MM CYLIND

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.03

Description

General part information

AIS18N08 Series

SENSOR PROX INDUCTIVE 8MM CYLIND

Documents

Technical documentation and resources

No documents available

Specification	AIS18N08RW220-2M	AIS18N08 Series

Indicator [custom]	LED	LED
Ingress Protection	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4
Material - Body	Nickel-Plated Brass	Nickel-Plated Brass
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	-	3-Wire, NPN-NC/NO, PNP-NC/NO, 3-Wire, NPN-NO, 3-Wire, PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M18	Cylinder, Threaded - M18
Response Frequency	10 Hz	10 - 500 Hz
Sensing Distance	0.315 in	0.315 in
Sensing Distance	8 mm	8 mm
Sensor Type	Inductive	Inductive
Shielding	Shielded	Shielded
Termination Style	Cable Leads	Cable Leads, Connector
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

Part	Package / Case	Indicator [custom]	Shielding	Ingress Protection	Termination Style	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Response Frequency	Output Type
Altech Corporation AIS18N08RW220-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	10 Hz
Altech Corporation AIS18N08UN024-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	3-Wire, NPN-NC/NO
Altech Corporation AIS18N08AW220-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	10 Hz
Altech Corporation AIS18N08UN024-Q65	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Connector	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	3-Wire, NPN-NC/NO
Altech Corporation AIS18N08AD024-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	200 Hz
Altech Corporation AIS18N08UP024-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	PNP-NC/NO, 3-Wire
Altech Corporation AIS18N08AN024-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	NPN-NO, 3-Wire
Altech Corporation AIS18N08AP024-2M	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Cable Leads	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	PNP-NO, 3-Wire
Altech Corporation AIS18N08AP024-Q65	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Connector	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	PNP-NO, 3-Wire
Altech Corporation AIS18N08UP024-Q65	Cylinder, Threaded - M18	LED	Shielded	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Connector	Inductive	30 VDC	10 VDC	Nickel-Plated Brass	70 °C	-25 °C	0.315 in	8 mm	500 Hz	PNP-NC/NO, 3-Wire

Part

Package / Case

Indicator [custom]

Shielding

Ingress Protection

Termination Style

Sensor Type

Voltage - Supply [Max]

Voltage - Supply [Min]

Material - Body

Operating Temperature [Max]

Operating Temperature [Min]

Sensing Distance

Response Frequency

Output Type

Altech Corporation

AIS18N08RW220-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

10 Hz

Altech Corporation

AIS18N08UN024-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

3-Wire, NPN-NC/NO

Altech Corporation

AIS18N08AW220-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

10 Hz

Altech Corporation

AIS18N08UN024-Q65

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Connector

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

3-Wire, NPN-NC/NO

Altech Corporation

AIS18N08AD024-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

200 Hz

Altech Corporation

AIS18N08UP024-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

PNP-NC/NO, 3-Wire

Altech Corporation

AIS18N08AN024-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

NPN-NO, 3-Wire

Altech Corporation

AIS18N08AP024-2M

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Cable Leads

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

PNP-NO, 3-Wire

Altech Corporation

AIS18N08AP024-Q65

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Connector

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

PNP-NO, 3-Wire

Altech Corporation

AIS18N08UP024-Q65

Cylinder, Threaded - M18

LED

Shielded

IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6

Connector

Inductive

30 VDC

10 VDC

Nickel-Plated Brass

70 °C

-25 °C

0.315 in

8 mm

500 Hz

PNP-NC/NO, 3-Wire
