RCHS1902224BK1
ActiveHammond Manufacturing
RACK STEEL 24.5X21X24.8 BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRCHS Series
RCHS1902224BK1
ActiveHammond Manufacturing
RACK STEEL 24.5X21X24.8 BLK
Deep-Dive with AI
DocumentsRCHS Series
Technical Specifications
Parameters and characteristics for this part
| Specification | RCHS1902224BK1 |
|---|---|
| Color | Black |
| Dimensions - Overall [x] | 622.3 mm |
| Dimensions - Overall [x] | 24.5 " |
| Dimensions - Overall [y] | 21 in |
| Dimensions - Overall [y] | 533.4 mm |
| Dimensions - Overall [z] | 628.65 mm |
| Dimensions - Overall [z] | 24.75 in |
| Dimensions - Panel [x] | 23.25 in |
| Dimensions - Panel [x] | 590.55 mm |
| Dimensions - Panel [y] | 452.37 mm |
| Dimensions - Panel [y] | 17.81 in |
| Dimensions - Panel [z] | 579.37 mm |
| Dimensions - Panel [z] | 22.81 in |
| Door | Doorless |
| Features | Handles |
| Material | Metal, Steel |
| Mounting Rails | Two Pair |
| Number of Units | 13 U |
| Style | Top, Bottom, Enclosed, Sides |
| Type | Table Top Rack Cabinet |
| Ventilation | Non-Vented |
| Weight | 30.8 kg |
| Weight | 68 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 472.10 | |
| 5 | $ 450.31 | |||
Description
General part information
RCHS1902224 Series

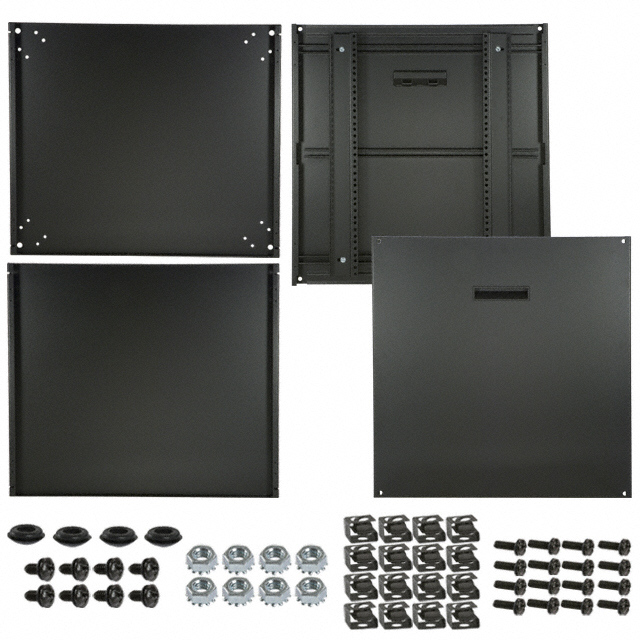

Metal, Steel Table Top Rack Cabinet Enclosed, Bottom, Sides, Top 24.500" L x 21.000" W x 24.750" H (622.30mm x 533.40mm x 628.65mm) Black
Documents
Technical documentation and resources
