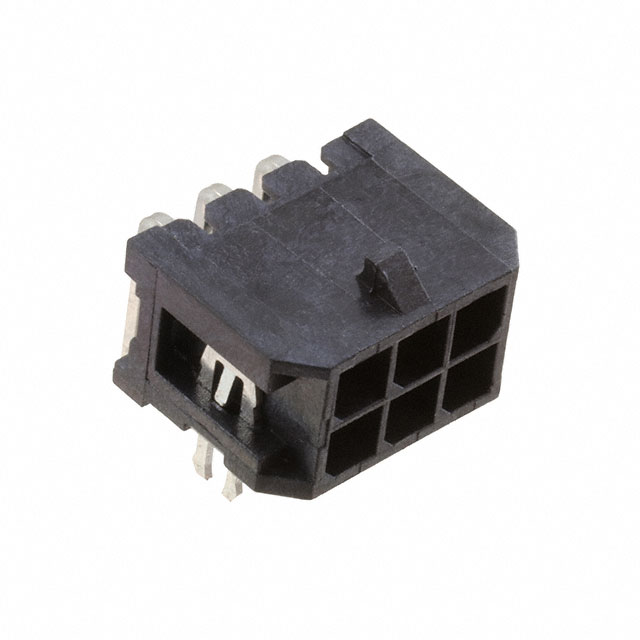

DML-06-A-H-T-A-SBL

Active

Adam Tech

CONN HEADER R/A 6POS 3MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 6POS 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	DML-06-A-H-T-A-SBL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Color	Mounting Type	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Voltage Rating	Style	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Type	Fastening Type	Material Flammability Rating	Number of Positions	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Number of Rows	Shrouding	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech DML-06-A-H-T-A-SBL	Black	Through Hole Right Angle	Solder	Square	0.118 in	3 mm	Header	250 VDC	Board to Cable/Wire	All	3.2 mm	0.126 in	Tin	7.37 mm	0.29 in	Varies by Wire Gauge	Male Pin	Locking Ramp	UL94 V-0	6	Brass	3 mm	0.118 in	Thermoplastic	2	Shrouded - 4 Wall
Adam Tech DML-06-A-V-T-SMT-BL-PP-T/R	Black	Surface Mount	Solder	Square	0.118 in	3 mm	Header	250 VAC	Board to Cable/Wire	All			Tin				Male Pin	Locking Ramp	UL94 V-0	6	Brass	3 mm	0.118 in	Thermoplastic	2	Shrouded - 4 Wall	9.91 mm	0.39 in	5 A	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.118" (3.00mm)
