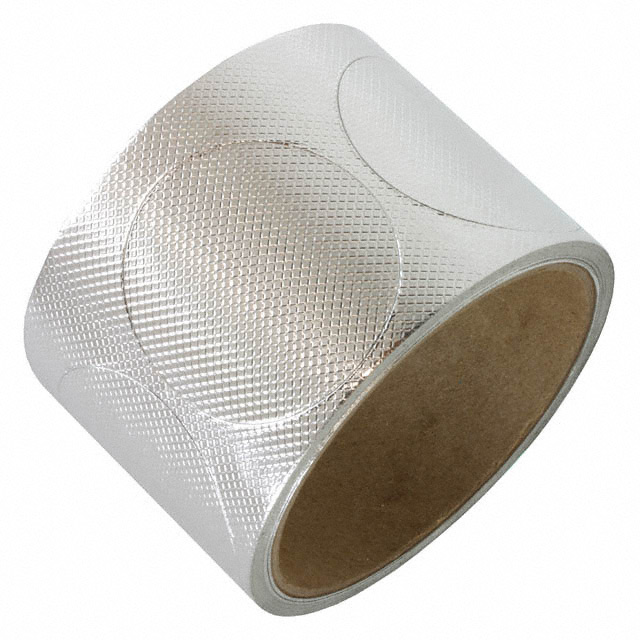

3M 1267 CIRCLE-2"-100

Active

3M (TC)

RF EMI SHIELDING SHEET 2" 100PK

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHIELDING SHEET 2" 100PK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1267 Embossed Aluminum Foil Non-Conductive, Single Sided 2.000" (50.80mm) X X 0.005" (0.13mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3M 1267 CIRCLE-2"-100	1267 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive
Length	-	19.05 - 101.6 mm
Length	-	0.75 - 4 in
Material	Embossed Aluminum Foil	Embossed Aluminum Foil
Shape	Circular	Circular, Rectangular, Square
Thickness - Overall [z]	0.13 mm	0.13 mm
Thickness - Overall [z]	0.005 in	0.005 in
Type	Shielding Sheet	Shielding Sheet
Width	-	0.75 in
Width	-	19.05 mm
Width	-	25.4 - 38.1 mm
Width [x]	2 in	1 - 2 in
Width [x]	50.8 mm	50.8 mm

RF EMI SHLDING SHEET 0.75" 250PK

Part	Adhesive	Thickness - Overall [z]	Thickness - Overall [z]	Type	Material	Width [y]	Width [y]	Shape	Width	Width [x]	Width [x]	Length	Length
3M (TC) 3M 1267 CIRCLE-0.75"-250	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil	0.75 in	19.05 mm	Circular
3M (TC) 3M 1267 CIRCLE-1"-250	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Circular	25.4 mm	1 in
3M (TC) 1267SQ-2(100)	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Rectangular		2 in	50.8 mm	50.8 mm	2 in
3M (TC) 3M 1267 1/2" X 3"-100	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Rectangular				76.2 mm	3 in
3M (TC) 3M 1267 0.75"SQ-250	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil	0.75 in	19.05 mm	Square				19.05 mm	0.75 in
3M (TC) 3M 1267 CIRCLE-2"-100	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Circular		2 in	50.8 mm
3M (TC) 3M 1267 3/4" X 4"-100	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil	0.75 in	19.05 mm	Rectangular				101.6 mm	4 in
3M (TC) 3M 1267 CIRCLE-1.5"-100	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Circular	38.1 mm	1.5 in
3M (TC) 3M 1267 CIRCLE-0.5"-250	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Circular
3M (TC) 3M 1267 3/4" X 2"-100	Non-Conductive, Single Sided	0.13 mm	0.005 in	Shielding Sheet	Embossed Aluminum Foil			Rectangular		2 in	50.8 mm	50.8 mm	2 in
