FVN.1S.304.CLYC37Z

Active

LEMO

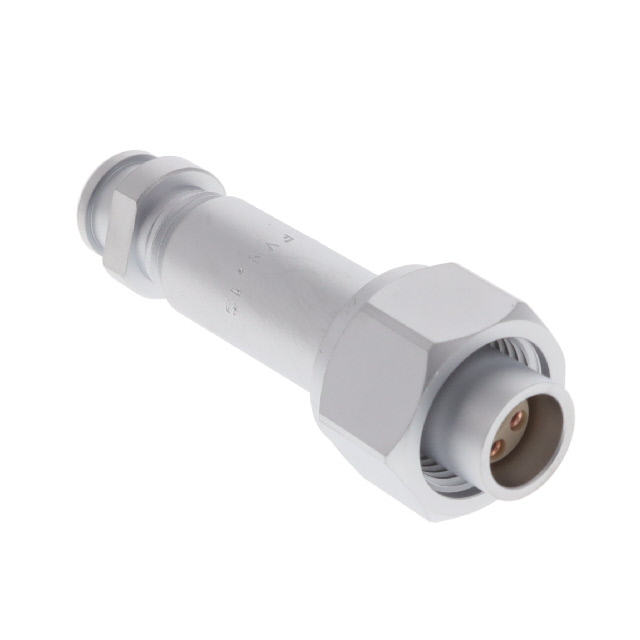

CONN CIRC PLUG 4POS GOLD

Search across all available documentation for this part.

Active

LEMO

CONN CIRC PLUG 4POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FVN.1S.304.CLYC37Z	FVN.1S Series

Cable Opening	-	4.2 mm
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	4.2 mm
Cable Opening	-	5.2 mm
Cable Opening [Max] [custom]	3.7 mm	3.7 mm
Cable Opening [Max] [custom]	0.146 in	0.146 - 0.165 in
Cable Opening [Min] [custom]	0.126 in	0.126 in
Cable Opening [Min] [custom]	3.2 mm	3.2 mm
Color	Silver	Silver
Connector Type	Male Pins, Plug, Female Sockets	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Current Rating (Amps)	10 A	10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	304
Shielding	Shielded	Shielded

CONN CIRC PLUG 4P GOLD SLDR CUP

Part	Number of Positions	Shell Material	Fastening Type	Material Flammability Rating	Primary Material	Connector Type	Contact Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Size - Insert	Ingress Protection	Color	Shielding	Mounting Type	Orientation	Insert Material	Current Rating (Amps)	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
LEMO FVN.1S.304.CLAC42	4	Brass	Push-Pull	UL94 V-0	Metal	Female Sockets, Male Pins, Plug	Brass, Bronze	Chrome	-55 °C	250 °C	Gold	0.126 in	4.2 mm	0.165 in	3.2 mm	304	IP50	Silver	Shielded	Free Hanging (In-Line)	Keyed	Polyetheretherketone (PEEK)	10 A
LEMO FVN.1S.304.CLYC37Z	4	Brass	Push-Pull	UL94 V-0	Metal	Female Sockets, Male Pins, Plug	Brass, Bronze	Chrome	-55 °C	250 °C	Gold	0.126 in		0.146 in	3.2 mm	304	IP50	Silver	Shielded	Free Hanging (In-Line)	Keyed	Polyetheretherketone (PEEK)	10 A	3.7 mm
LEMO FVN.1S.304.CLYC47Z	4	Brass	Push-Pull	UL94 V-0	Metal	Female Sockets, Male Pins, Plug	Brass, Bronze	Chrome	-55 °C	250 °C	Gold					304	IP50	Silver	Shielded	Free Hanging (In-Line)	Keyed	Polyetheretherketone (PEEK)	10 A		0.165 in, 0.205 in	4.2 mm	5.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets and Male Pins
