M3DRK-5018R

Active

IDC CABLE - MKR50K/MC50M/MPR50K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3302 Series Ribbon Cable Assembly Length Guide +1

M3DRK-5018R

Active

IDC CABLE - MKR50K/MC50M/MPR50K

Deep-Dive with AI

Documents3302 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.02
		10	$ 33.28
		25	$ 30.19
		50	$ 28.10
		100	$ 26.21
		250	$ 23.98

Description

General part information

M3DRK Series

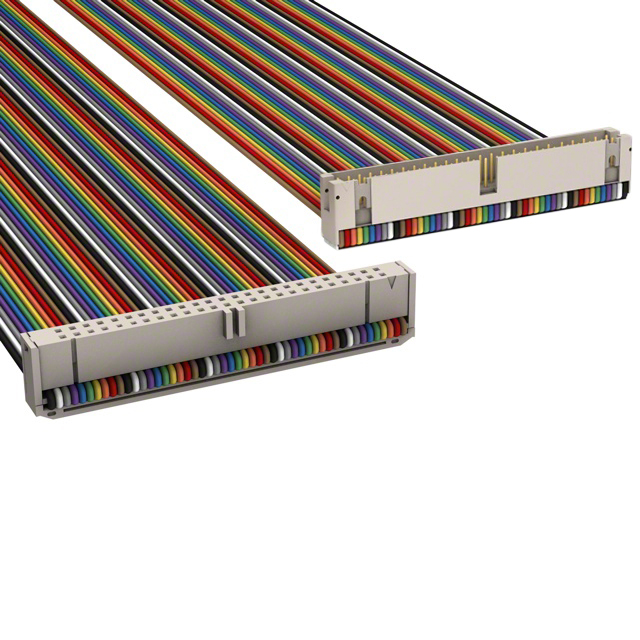

50 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

3302 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3DRK-5018R	M3DRK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	-	1.52 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 - 5 '
Length [x]	457.2 mm	1.02 - 914.4 m
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	50	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3DRK Series

IDC CABLE - MKR60K/MC60F/MPR60K

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Cable Termination	Shielding	Contact Finish	Number of Positions	Connector Type	Pitch - Cable	Pitch - Cable	Features	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Number of Rows	Length	Length	Length	Length
3M M3DRK-6040K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	IDC	Unshielded	Gold	60	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	1.02 m	3.34 ft	0.1 in	2.54 mm	2
3M M3DRK-3406R	0.76 Ám	30 Áin	Multiple, Ribbon	IDC	Unshielded	Gold	34	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief			0.1 in	2.54 mm	2	152.4 mm	6 "	0.5 '
3M M3DRK-2018R	0.76 Ám	30 Áin	Multiple, Ribbon	IDC	Unshielded	Gold	20	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft	0.1 in	2.54 mm	2
3M M3DRK-1018R	0.76 Ám	30 Áin	Multiple, Ribbon	IDC	Unshielded	Gold	10	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft	0.1 in	2.54 mm	2
3M M3DRK-5006J	0.76 Ám	30 Áin		IDC	Unshielded	Gold	50	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief			0.1 in	2.54 mm	2	152.4 mm	6 "	0.5 '
3M M3DRK-2660K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	IDC	Unshielded	Gold	26	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief			0.1 in	2.54 mm	2	1.52 m			5 '
3M M3DRK-2618J	0.76 Ám	30 Áin		IDC	Unshielded	Gold	26	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft	0.1 in	2.54 mm	2
3M M3DRK-5018R	0.76 Ám	30 Áin	Multiple, Ribbon	IDC	Unshielded	Gold	50	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft	0.1 in	2.54 mm	2
3M M3DRK-4036R	0.76 Ám	30 Áin	Multiple, Ribbon	IDC	Unshielded	Gold	40	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	914.4 mm	3 ft	0.1 in	2.54 mm	2
3M M3DRK-4036J	0.76 Ám	30 Áin		IDC	Unshielded	Gold	40	Socket to Plug	0.05 "	1.27 mm	Polarizing Key, Strain Relief	914.4 mm	3 ft	0.1 in	2.54 mm	2
