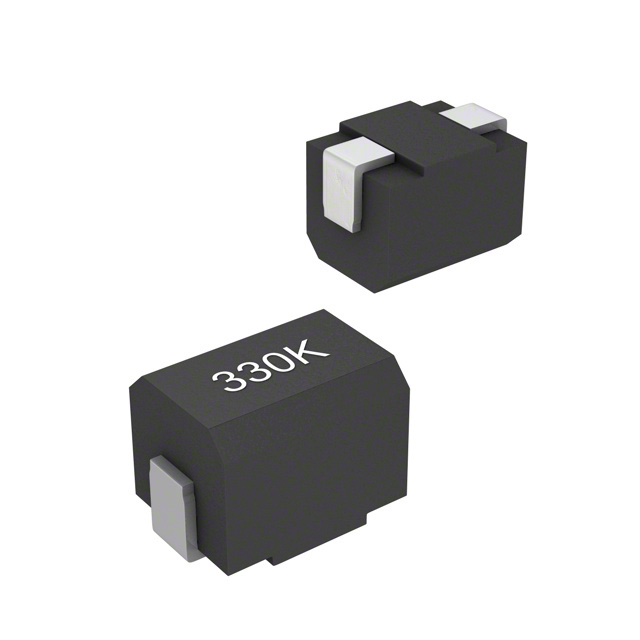

CC453232-6R8KL

Active

Bourns Inc.

IND4.2X4.5X3.2MM,6.8UH10%0.6A,NON-SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Datasheet

CC453232-6R8KL

Active

Bourns Inc.

IND4.2X4.5X3.2MM,6.8UH10%0.6A,NON-SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC453232-6R8KL

Current Rating (Amps)	600 mA
DC Resistance (DCR)	350 mOhm
Frequency - Self Resonant	28 MHz
Height - Seated (Max) [Max] [z]	3.4 mm
Height - Seated (Max) [Max] [z]	0.134 in
Inductance	6.8 µH
Inductance Frequency - Test	7.96 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	1812 (4532 Metric)
Q @ Freq	10, 7.96 MHz
Shielding	Unshielded
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.5 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	10 %
Type	Wirewound, Drum Core

CC453232 Series

Part	Q @ Freq	Frequency - Self Resonant	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Inductance Frequency - Test	Tolerance	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Package / Case	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. CC453232-220KL	2.52 MHz 10	18 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	22 µH	2.52 MHz	10 %	370 mA	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)
Bourns Inc. CC453232-101KL	20 796 kHz	8 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	100 µH	796 kHz	10 %	0.18 A	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)	4 Ohm
Bourns Inc. CC453232-1R5KL	7.96 MHz 10	130 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	1.5 µH	7.96 MHz	10 %	950 mA	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)	150 mOhm
Bourns Inc. CC453232-120KL	2.52 MHz 10	21 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	12 µH	2.52 MHz	10 %	0.5 A	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)
Bourns Inc. CC453232-390KL	2.52 MHz 10	12 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	39 µH	2.52 MHz	10 %	0.28 A	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)	1.6 Ohm
Bourns Inc. CC453232-6R8KL	7.96 MHz 10	28 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	6.8 µH	7.96 MHz	10 %	600 mA	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)		350 mOhm
Bourns Inc. CC453232-2R2KL	7.96 MHz 10	80 MHz	Unshielded	3.2 mm	0.177 in	4.5 mm	0.126 "	2.2 µH	7.96 MHz	10 %	0.85 A	125 °C	-40 °C	Surface Mount	Drum Core Wirewound	3.4 mm	0.134 in	Ferrite	1812 (4532 Metric)		180 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.36
		10	$ 0.29
		25	$ 0.27
		50	$ 0.25
		100	$ 0.22
		250	$ 0.21
	Digi-Reel®	1	$ 0.36
		10	$ 0.29
		25	$ 0.27
		50	$ 0.25
		100	$ 0.22
		250	$ 0.21
	Tape & Reel (TR)	500	$ 0.19
		1000	$ 0.15
		2500	$ 0.14
		5000	$ 0.14
		12500	$ 0.13
		25000	$ 0.13
		50000	$ 0.13
Newark	Each	1000	$ 0.14
		2500	$ 0.13

Description

General part information

CC453232 Series

6.8 µH Unshielded Drum Core, Wirewound Inductor 600 mA 350mOhm Max 1812 (4532 Metric)

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
