2071508-3
ActiveTE Connectivity AMP Connectors
OJT-SS-112HM-WG,00000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2071508-3
ActiveTE Connectivity AMP Connectors
OJT-SS-112HM-WG,00000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2071508-3 |
|---|---|
| Approval Agency | VDE, TUV, cURus, CQC |
| Coil Current | 37.5 mA |
| Coil Insulation | Class F |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.68 | |
| 10 | $ 3.21 | |||
| 25 | $ 3.04 | |||
| 40 | $ 2.96 | |||
| 80 | $ 2.84 | |||
| 230 | $ 2.67 | |||
| 440 | $ 2.57 | |||
| 945 | $ 2.46 | |||
OJT-SS Series
OJT-SS-112HM-WG,00000
| Part | Relay Type | Coil Current | Operate Time | Load - Max Switching [Max] | Coil Voltage | Must Operate Voltage | Release Time | Approval Agency | Mounting Type | Contact Form | Coil Resistance | Seal Rating | Switching Voltage | Termination Style | Coil Insulation | Contact Rating (Current) | Must Release Voltage | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2071508-3 | General Purpose | 37.5 mA | 10 ms | 2500 VA | 12 VDC | 9 VDC | 4 ms | CQC, cURus, TUV, VDE | Through Hole | SPST-NO (1 Form A) | 320 Ohms | Sealed - Flux Protection | 250 VAC | PC Pin | Class F | 10 A | 1.2 VDC | Silver Tin Oxide (AgSnO) | -40 °C | 105 ░C | Non Latching |
Description
General part information
OJT-SS Series

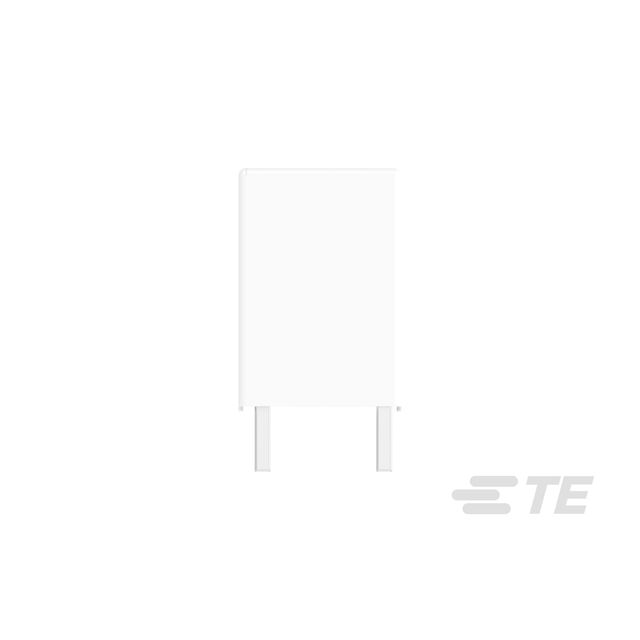

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Documents
Technical documentation and resources
