HLE-111-02-G-DV-BE

Active

Samtec Inc.

CONN SOCKET STRIP SKT 22 POS 2.54MM SOLDER ST BOTTOM ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HLE Datasheet +1

HLE-111-02-G-DV-BE

Active

Samtec Inc.

CONN SOCKET STRIP SKT 22 POS 2.54MM SOLDER ST BOTTOM ENTRY SMD TUBE

Deep-Dive with AI

DocumentsDatasheet HLE Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLE-111-02-G-DV-BE

Connector Type	Receptacle, Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.66 mm
Insulation Height	0.144 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	400 VAC

HLE-111 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Contact Type	Fastening Type	Connector Type	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Features	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. HLE-111-02-F-DV-BE-A-TR	2.54 mm	0.1 in	22 positions	Tin	All	Surface Mount	Female Socket	Push-Pull	Receptacle Bottom Entry	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	3 µin	0.076 µm	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Board Guide	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. HLE-111-02-S-DV-A	2.54 mm	0.1 in	22 positions	Tin	All	Surface Mount	Female Socket	Push-Pull	Receptacle	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	30 Áin	0.76 Ám	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Board Guide	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. HLE-111-02-L-DV-A-P-TR	2.54 mm	0.1 in	22 positions	Tin	All	Surface Mount	Female Socket	Push-Pull	Receptacle	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	10 çin	0.25 çm	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Board Guide Pick and Place	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. HLE-111-02-G-DV-A-K	2.54 mm	0.1 in	22 positions	Gold	All	Surface Mount	Female Socket	Push-Pull	Receptacle	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	20 µin	0.51 µm	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Board Guide Pick and Place	Liquid Crystal Polymer (LCP)	Square	3 µin	0.076 µm
Samtec Inc. HLE-111-02-G-DV-BE	2.54 mm	0.1 in	22 positions	Gold	All	Surface Mount	Female Socket	Push-Pull	Receptacle Bottom Entry	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	20 µin	0.51 µm	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold		Liquid Crystal Polymer (LCP)	Square	3 µin	0.076 µm
Samtec Inc. HLE-111-02-G-DV-P-TR	2.54 mm	0.1 in	22 positions	Gold	All	Surface Mount	Female Socket	Push-Pull	Receptacle	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	20 µin	0.51 µm	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Pick and Place	Liquid Crystal Polymer (LCP)	Square	3 µin	0.076 µm
Samtec Inc. HLE-111-02-S-DV-BE-K	2.54 mm	0.1 in	22 positions	Tin	All	Surface Mount	Female Socket	Push-Pull	Receptacle Bottom Entry	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	30 Áin	0.76 Ám	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Pick and Place	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. HLE-111-02-S-DV-PE-BE	2.54 mm	0.1 in	22 positions	Tin	All	Through Hole	Female Socket	Push-Pull		Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	30 Áin	0.76 Ám	-55 °C	125 °C	Beryllium Copper	Black	3.5 mm	0.138 in	Gold		Liquid Crystal Polymer (LCP)	Square			0.09 "	2.29 mm
Samtec Inc. HLE-111-02-F-DV-A	2.54 mm	0.1 in	22 positions	Tin	All	Surface Mount	Female Socket	Push-Pull	Receptacle	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	3 µin	0.076 µm	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Board Guide	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. HLE-111-02-S-DV-A-P	2.54 mm	0.1 in	22 positions	Tin	All	Surface Mount	Female Socket	Push-Pull	Receptacle	Solder	2	0.1 in	2.54 mm	4.1 A	400 VAC	30 Áin	0.76 Ám	-55 °C	125 °C	Beryllium Copper	Black	3.66 mm	0.144 in	Gold	Board Guide Pick and Place	Liquid Crystal Polymer (LCP)	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.88
		25	$ 3.59
		50	$ 3.34
		100	$ 2.96
Digikey	Tube	20	$ 5.63

Description

General part information

HLE-111 Series

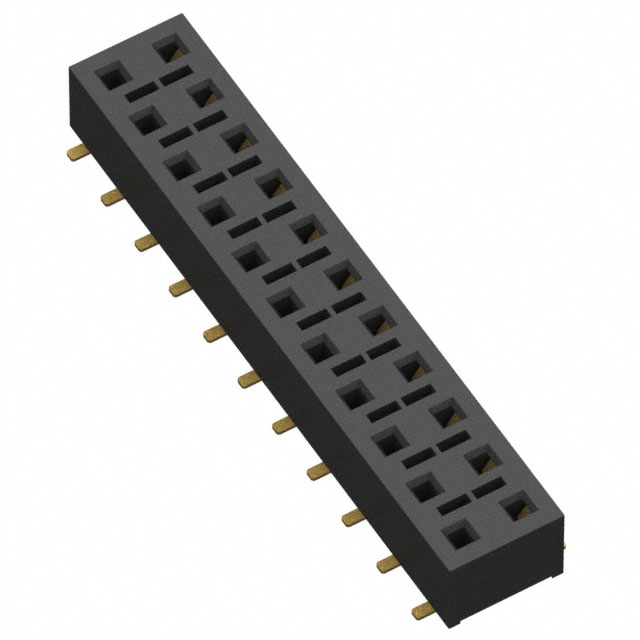

22 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold
