C2M0045170P

Active

Wolfspeed

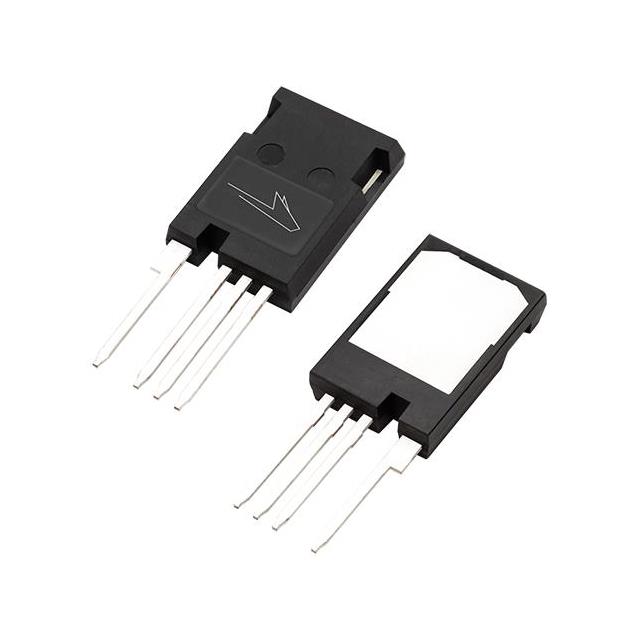

SICFET N-CH 1700V 72A TO247-4

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 1700V 72A TO247-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 1700 V 72A (Tc) 520W (Tc) Through Hole TO-247-4L

Technical documentation and resources

Specification	C2M0045170P	C2M0045170 Series

Current - Continuous Drain (Id) @ 25°C	72 A	72 A
Drain to Source Voltage (Vdss)	1700 V	1700 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	188 nC	188 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	3672 pF	3672 pF
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	TO-247-4	TO-247-3, TO-247-4
Power Dissipation (Max) [Max]	520 W	520 W
Rds On (Max) @ Id, Vgs	59 mOhm	59 - 70 mOhm
Supplier Device Package	TO-247-4L	TO-247-3, TO-247-4L
Vgs (Max) [Max]	25 V	25 V
Vgs (Max) [Min]	-10 V	-10 V
Vgs(th) (Max) @ Id [Max]	4 V	4 V

Part	Vgs(th) (Max) @ Id [Max]	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Drain to Source Voltage (Vdss)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Vgs (Max) [Min]	Vgs (Max) [Max]	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs
Wolfspeed C2M0045170D	4 V	TO-247-3	188 nC	72 A	TO-247-3	1700 V	150 °C	-40 °C	Through Hole	-10 V	25 V	N-Channel	3672 pF	520 W	70 mOhm
Wolfspeed C2M0045170P	4 V	TO-247-4	188 nC	72 A	TO-247-4L	1700 V	150 °C	-40 °C	Through Hole	-10 V	25 V	N-Channel	3672 pF	520 W	59 mOhm
