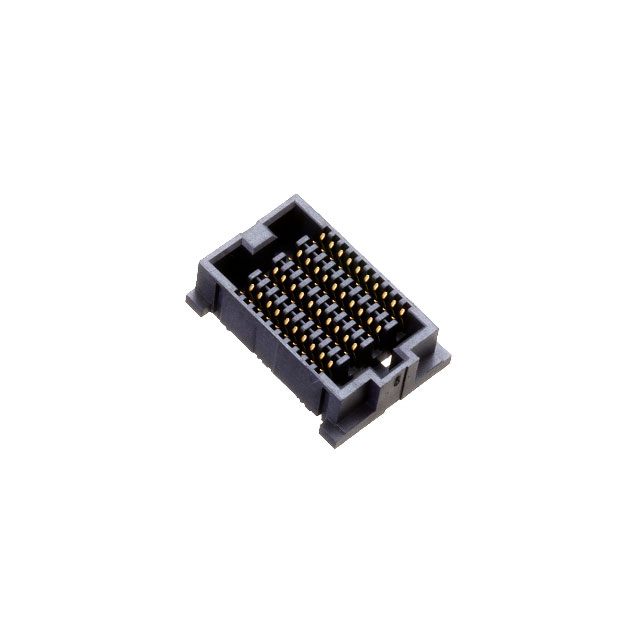

SEAF8-10-05.0-S-08-2-SPECIAL

Obsolete

Samtec Inc.

CONN HD ARRAY RCPT 80P SMD GOLD

Search across all available documentation for this part.

Obsolete

Samtec Inc.

CONN HD ARRAY RCPT 80P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Number of Positions	Number of Rows	Contact Finish	Features	Mounting Type	Height Above Board	Height Above Board
Samtec Inc. SEAF8-10-05.0-S-08-3	0.8 mm	0.031 in	0.76 Ám	30 Áin	High Density Array Female	7 mm 10 mm	80	8	Gold	Board Guide	Surface Mount	4.57 mm	0.18 in
Samtec Inc. SEAF8-10-05.0-S-10-2-SPECIAL	0.8 mm	0.031 in	0.76 Ám	30 Áin	High Density Array Female	7 mm 10 mm	100	10	Gold		Surface Mount	4.57 mm	0.18 in
Samtec Inc. SEAF8-10-05.0-S-04-2	0.8 mm	0.031 in	0.76 Ám	30 Áin	High Density Array Female	7 mm 10 mm	40		Gold		Surface Mount	4.57 mm	0.18 in
Samtec Inc. SEAF8-10-05.0-L-04-3	0.8 mm	0.031 in	0.25 Ám	10 Áin	High Density Array Female	7 mm 10 mm	40		Gold	Board Guide	Surface Mount	4.57 mm	0.18 in
Samtec Inc. SEAF8-10-05.0-S-08-2-SPECIAL	0.8 mm	0.031 in	0.76 Ám	30 Áin	High Density Array Female	7 mm 10 mm	80	8	Gold		Surface Mount	4.57 mm	0.18 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

80 Position Connector High Density Array, Female Surface Mount Gold

Technical documentation and resources
