IMC101TF048XUMA1

Active

Infineon Technologies

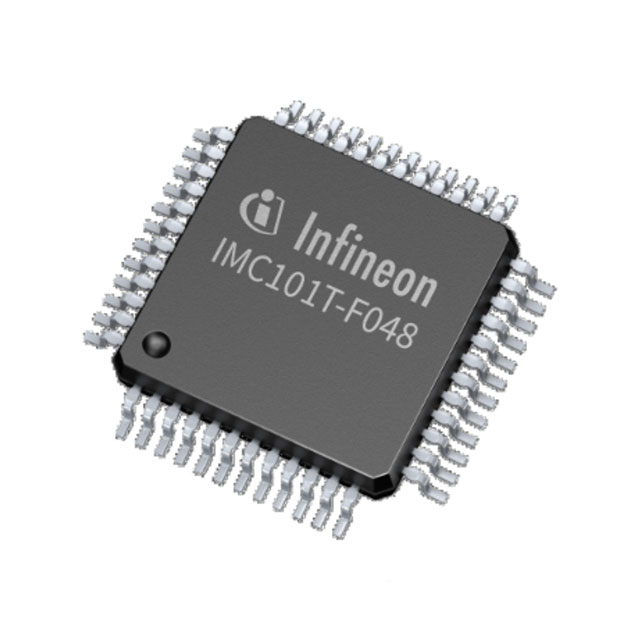

THE IMC101T-F048 IS A PMSM/BLDC MOTOR CONTROLLER WITH INTEGRATED SCRIPT ENGINE IN QFP-48 PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IMC101TF048XUMA1

Active

Infineon Technologies

THE IMC101T-F048 IS A PMSM/BLDC MOTOR CONTROLLER WITH INTEGRATED SCRIPT ENGINE IN QFP-48 PACKAGE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMC101TF048XUMA1

Applications	Home Appliance
Current - Output	50 mA
Function	Controller - Commutation, Direction Management
Interface	Analog, PWM
Motor Type - AC, DC	Synchronous, AC
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	48-LQFP
Supplier Device Package	PG-LQFP-48-10
Technology	CMOS
Voltage - Supply [Max]	40 VDC
Voltage - Supply [Min]	5.5 V

IMC101 Series

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Motor Type - AC, DC	Package / Case	Function	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Interface	Supplier Device Package	Current - Output	Output Configuration	Technology	Package / Case [custom]	Package / Case [custom]
Infineon Technologies IMC101TQ048XUMA1	Surface Mount	5.5 V	3 V	AC Synchronous	48-VFQFN Exposed Pad	Controller	105 °C	-40 °C	Home Appliance	Analog PWM	PG-VQFN-48-73	50 mA
Infineon Technologies IMC101TF048XUMA1	Surface Mount	40 VDC	5.5 V	AC Synchronous	48-LQFP	Controller - Commutation Direction Management	105 °C	-40 °C	Home Appliance	Analog PWM	PG-LQFP-48-10	50 mA	Half Bridge (3)	CMOS
Infineon Technologies IMC101TT038XUMA1	Surface Mount	5.5 V	3 V	AC Synchronous	38-TFSOP	Controller	105 °C	-40 °C	Home Appliance	Analog PWM	PG-TSSOP-38-9	50 mA			4.4 mm	0.173 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.30
		10	$ 3.86
		25	$ 3.65
		100	$ 3.17
		250	$ 3.00
		500	$ 2.69
	Digi-Reel®	1	$ 4.30
		10	$ 3.86
		25	$ 3.65
		100	$ 3.17
		250	$ 3.00
		500	$ 2.69
	Tape & Reel (TR)	1500	$ 2.01
Newark	Each (Supplied on Cut Tape)	1	$ 4.18
		10	$ 3.16
		25	$ 2.91
		50	$ 2.77
		100	$ 2.63
		250	$ 2.50
		500	$ 2.41

Description

General part information

IMC101 Series

iMOTION™ motor controllerwith Motion Control Engine (MCE 2.0) and support for customer scripts in QFP-48 package. The IMC101T-F048 is a flexible control solution for variable speed drives. It performs sensor less field oriented control (FOC) for a permanent magnet synchronous motor (PMSM). The integrated script engine (small virtual machine) provides application flexibility by running customer scripts.
