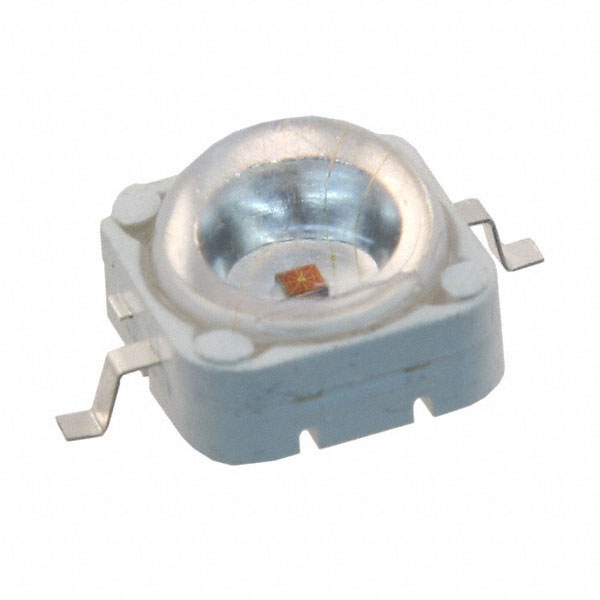

AAD1-9090SE28ZC

Active

Kingbright

LED AAD1-9090 RED 625NM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAD1-9090SE28ZC

Active

Kingbright

LED AAD1-9090 RED 625NM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AAD1-9090 Series

LED Lighting Color AAD1-9090 Red 625nm (Typ) 2-SMD, Gull Wing Exposed Pad

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAD1-9090SE28ZC	AAD1-9090 Series

Color	Red	Red, Green, Blue, Yellow, Orange-Red
Configuration	-	Starboard
Current - Max	-	350 mA
Current - Max	-	350 mA
Current - Max	-	350 mA
Current - Max [Max]	350 mA	350 - 700 mA
Current - Test	350 mA	350 - 500 mA
Height	-	8.3 mm
Height - Seated (Max) [Max] [z]	6.78 mm	6.78 mm
Height - Seated (Max) [Max] [z]	0.267 in	0.267 in
Lens Type	-	Domed
Lumens/Watt @ Current - Test	40 lm/W	7 - 40 lm/W
Lumens/Watt @ Current - Test	-	18 lm/W
Lumens/Watt @ Current - Test	-	34 lm/W
Lumens/Watt @ Current - Test	-	43 lm/W
Luminous Flux @ Current/Temperature	35 lm	20 - 50 lm
Luminous Flux @ Current/Temperature	-	30 lm
Luminous Flux @ Current/Temperature	-	50 lm
Luminous Flux @ Current/Temperature	-	20 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad	4-SMD, J-Lead Exposed Pad, 2-SMD, Gull Wing Exposed Pad
Size / Dimension [x]	9 mm	9 mm
Size / Dimension [x]	0.354 "	0.354 - 19.75 mm
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [y]	0.354 in	0.354 - 19.05 mm
Thermal Resistance of Package	-	9 - 12 °C/W
Thermal Resistance of Package	-	11 °C/W
Thermal Resistance of Package [custom]	12 °C/W	12 °C/W
Type	-	LED Module
Viewing Angle	100 °	100 - 135 °
Voltage - Forward (Vf) (Typ)	2.5 V	2.5 - 3.9 V
Voltage - Forward (Vf) (Typ)	-	2.5 V
Voltage - Forward (Vf) (Typ)	-	3.2 V
Voltage - Forward (Vf) (Typ)	-	3.3 V
Wavelength	625 nm	460 - 625 nm
Wavelength	-	625nm Red, 458nm Blue, 530nm Green

AAD1-9090 Series

LED MOD XPOWER RGB STARBOARD

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Type	Viewing Angle	Wavelength	Current - Test	Height [z]	Lens Type	Color	Configuration	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Wavelength	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Thermal Resistance of Package [custom]
Kingbright AAD1-9090BRGC-01/3-S	19.75 mm	19.05 mm	350 mA	2.5 V	3.2 V	3.3 V	LED Module	135 °	458nm Blue, 530nm Green, 625nm Red	350 mA	8.3 mm	Domed	Blue, Green, Red	Starboard
Kingbright AAD1-9090BRGC-01/3	0.354 "	0.354 in		2.5 V	3.2 V	3.3 V		135 °	458nm Blue, 530nm Green, 625nm Red				Blue, Green, Red		350 mA	350 mA	350 mA	Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	4-SMD, J-Lead Exposed Pad	18 lm/W	34 lm/W	43 lm/W	30 lm	50 lm	20 lm	9 °C/W, 9 °C/W, 12 °C/W
Kingbright AAD1-9090SY28ZC-S	19.75 mm	19.05 mm	350 mA				LED Module	135 °		350 mA	8.3 mm	Domed	Yellow	Starboard																	2.5 V	588 nm
Kingbright AAD1-9090SY28ZC	0.354 "	0.354 in	350 mA					100 °		350 mA			Yellow					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								2.5 V	588 nm	37 lm/W	32 lm	12 °C/W
Kingbright AAD1-9090QB11ZC/3-S	19.75 mm	19.05 mm	700 mA				LED Module	135 °			8.3 mm	Domed	Blue	Starboard																	3.9 V	460 nm	7 lm/W	20 lm
Kingbright AAD1-9090SE28ZC-S	19.75 mm	19.05 mm	350 mA				LED Module	135 °		350 mA	8.3 mm	Domed	Orange-Red	Starboard																	2.5 V	625 nm	34 lm/W	30 lm
Kingbright AAD1-9090SE28ZC	0.354 "	0.354 in	350 mA					100 °		350 mA			Red					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								2.5 V	625 nm	40 lm/W	35 lm	12 °C/W
Kingbright AAD1-9090SE9ZC/2	0.354 "	0.354 in	500 mA					100 °		500 mA			Red					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								2.7 V	623 nm	37 lm/W	50 lm	12 °C/W
Kingbright AAD1-9090QB11ZC/3	0.354 "	0.354 in	700 mA					100 °					Blue					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								3.9 V	460 nm	11 lm/W	29 lm		11 °C/W
