TR20AHC1N

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 20, NYLON (POLYAMIDE), 21.1 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 20, NYLON (POLYAMIDE), 21.1 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR20AHC1N

Cable Exit	180 °
Cable Opening [diameter]	0.87 in
Cable Opening [diameter]	22.1 mm
Color	Black
Features	Grommet, Clamp Screws
For Use With/Related Products	Jacketed Cable

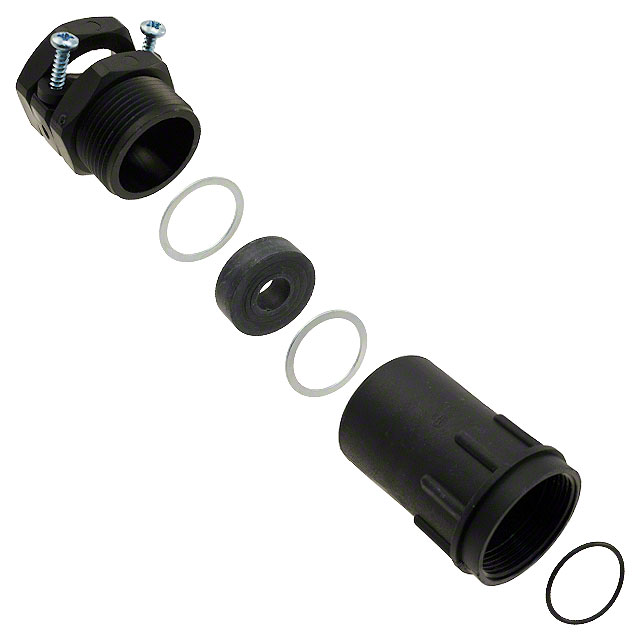

Includes	1 Grommet, 1 O-Ring, 2 Screws, 2 Washers, 2 pc Cable Clamp, 1 Backshell
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	20
Shielding	Unshielded
Type	Backshell, Cable Clamp

Part	Includes	For Use With/Related Products	Type	Features	Cable Exit	Shielding	Ingress Protection	Material	Cable Opening [diameter]	Cable Opening [diameter]	Color	Material Flammability Rating	Shell Size - Insert	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]
ITT Cannon, LLC TR20AHC1N	1 Backshell 1 Grommet 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers	Jacketed Cable	Backshell Cable Clamp	Clamp Screws Grommet	180 °	Unshielded	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon	0.87 in	22.1 mm	Black	UL94 V-0	20
ITT Cannon, LLC TR20AAD		Trident Ringlock (TR) Connectors	Backshell Heat Shrink Adapter		180 °	Unshielded		Metal			Silver		20	1 3/16-18 UNEF-2B	1.437 in	36.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp 20
