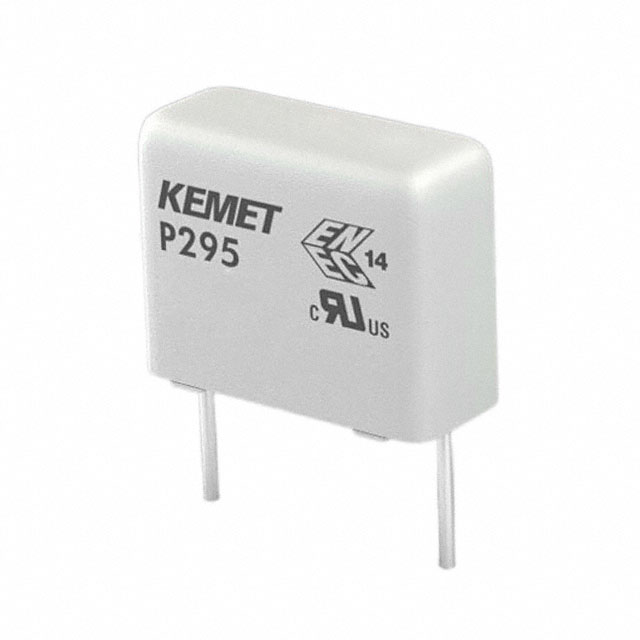

P295BE102M500A
ActiveKEMET
CAP FILM 1000PF 20% 500VAC RAD
Deep-Dive with AI
Search across all available documentation for this part.
P295BE102M500A
ActiveKEMET
CAP FILM 1000PF 20% 500VAC RAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P295BE102M500A |
|---|---|
| Applications | EMI, RFI Suppression |
| Capacitance | 0.001 µF |
| Dielectric Material | Paper, Metallized |
| Height - Seated (Max) [Max] | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm |
| Lead Spacing | 15 mm |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Ratings | Y1 |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [y] | 0.217 in |
| Size / Dimension [y] | 5.5 mm |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.62 | |
| 10 | $ 1.21 | |||
| 50 | $ 1.11 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.60 | |||
| 5000 | $ 0.57 | |||
Description
General part information
P295BE Series
1000 pF Film Capacitor 500V Paper, Metallized Radial
