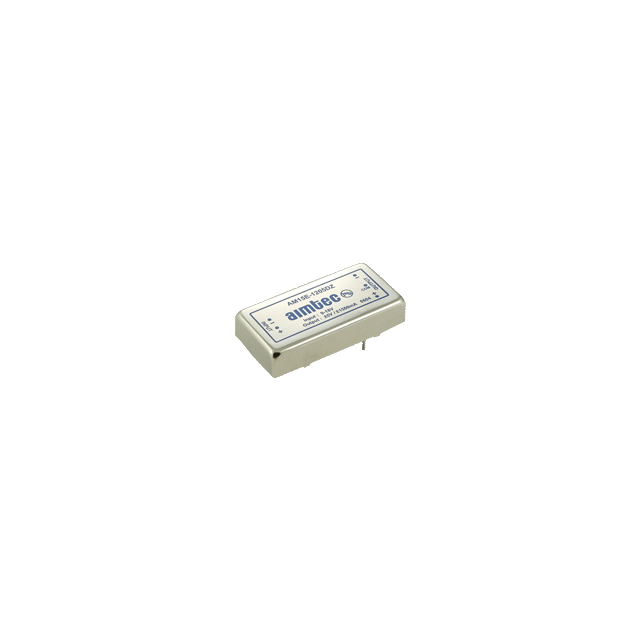

AM15E-1215DZ
ActiveDComponents
DC DC CONVERTER +/-15V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM15E-1215DZ
ActiveDComponents
DC DC CONVERTER +/-15V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AM15E-1215DZ | AM15E Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE, cURus | CE, cURus, cULus, CE, cURus |
| Current - Output (Max) | 500 mA | 500 mA |
| Current - Output (Max) | 500 mA | 500 mA |
| Current - Output (Max) | - | 310 mA |
| Current - Output (Max) | - | 1.25 A |
| Efficiency | 84 % | 84 - 85 % |
| Features | - | Remote On/Off |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 1 - 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 5-DIP Module | 6-DIP Module, 5-DIP Module |
| Package / Case | - | 5 Leads |
| Power (Watts) | 15 W | 15 W |
| Size / Dimension [x] | 2 in | 2 in |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [z] | 0.4 " | 0.4 " |
| Size / Dimension [z] | 10.2 mm | 10.2 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V | 18 - 36 V |
| Voltage - Input (Min) [Min] | 9 V | 9 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 15 V | 12 - 15 V |
| Voltage - Output 1 | - | -24 V |
| Voltage - Output 1 | - | 24 V |
| Voltage - Output 2 | -15 V | -24 - -15 V |
AM15E Series
DC DC CONVERTER +/-24V 15W
| Part | Applications | Mounting Type | Number of Outputs | Type | Voltage - Output 2 | Efficiency | Current - Output (Max) | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Power (Watts) | Voltage - Input (Max) [Max] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Features | Voltage - Output 1 | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DComponents AM15E-1224DZ | ITE (Commercial) | Through Hole | 2 | Isolated Module | -24 V | 85 % | 310 mA | -24 V | 24 V | 9 V | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | CE, cULus, cURus | 15 W | 18 V | 1.5 kV | 85 °C | -40 °C | |||||||
DComponents AM15EW-2412SZ | ITE (Commercial) | Through Hole | 1 | Isolated Module | 85 % | 9 V | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | CE, cULus, cURus | 15 W | 36 V | 1.5 kV | 85 °C | -40 °C | 5 Leads | 6-DIP Module | Remote On/Off | 12 V | 1.25 A | ||||||
DComponents AM15E-1215DZ | ITE (Commercial) | Through Hole | 2 | Isolated Module | -15 V | 84 % | 9 V | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | CE, cURus | 15 W | 18 V | 1.5 kV | 85 °C | -40 °C | 5-DIP Module | 15 V | 500 mA | 500 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 26.99 | |
| 10 | $ 23.72 | |||
| 25 | $ 22.54 | |||
| 50 | $ 21.68 | |||
| 100 | $ 20.85 | |||
| 250 | $ 19.81 | |||
| 500 | $ 19.05 | |||
Description
General part information
AM15E Series
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 18V Input
