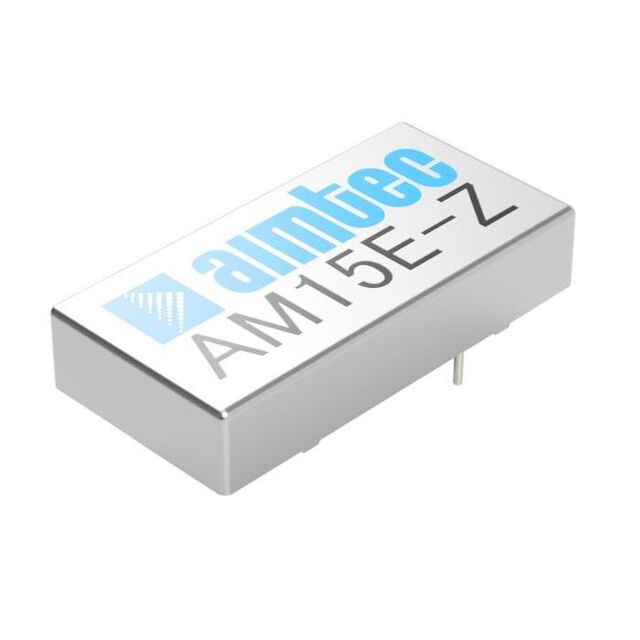

AM15E-1224DZ

Active

DComponents

DC DC CONVERTER +/-24V 15W

Search across all available documentation for this part.

Active

DComponents

DC DC CONVERTER +/-24V 15W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output -24 ~ 24V -24V 310mA, 310mA 9V - 18V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-24V 15W

Part	Applications	Mounting Type	Number of Outputs	Type	Voltage - Output 2	Efficiency	Current - Output (Max)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Features	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
DComponents AM15E-1224DZ	ITE (Commercial)	Through Hole	2	Isolated Module	-24 V	85 %	310 mA	-24 V	24 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	CE, cULus, cURus	15 W	18 V	1.5 kV	85 °C	-40 °C
DComponents AM15EW-2412SZ	ITE (Commercial)	Through Hole	1	Isolated Module		85 %				9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	CE, cULus, cURus	15 W	36 V	1.5 kV	85 °C	-40 °C	5 Leads	6-DIP Module	Remote On/Off	12 V	1.25 A
DComponents AM15E-1215DZ	ITE (Commercial)	Through Hole	2	Isolated Module	-15 V	84 %				9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	CE, cURus	15 W	18 V	1.5 kV	85 °C	-40 °C		5-DIP Module		15 V		500 mA	500 mA
