W2P15X7W04-U100D3B0A

Active

KYOCERA AVX

ANT ASSY, WLAN2 04 100 D0230

Search across all available documentation for this part.

Active

KYOCERA AVX

ANT ASSY, WLAN2 04 100 D0230

Technical Specifications

Parameters and characteristics commom to parts in this series

ANT ASSY, WLAN2 04 100 D0230

Part	Applications	RF Family/Standard	Frequency Group	Mounting Type	Return Loss [Max]	Return Loss [Min]	Frequency (Center/Band)	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Termination	Features	Features	Frequency Range [Min]	Frequency Range [Max]	Antenna Type
KYOCERA AVX W2P15X7W04-U100D3B0A	Wi-Fi	WiFi	SHF	Adhesive	-7.3 dB	-9 dB	5.5 GHz, 6.525 GHz	3.9 dBi, 4.3 dBi	0.016 in	0.4 mm	2	U.FL	Cable	100 mm	5.15 GHz, 5.925 GHz	5.85 GHz, 7.125 GHz	PCB Trace
KYOCERA AVX W2P15X7F04-U100D3B0T	Wi-Fi	WiFi	SHF	Adhesive	-7.3 dB	-9 dB	5.5 GHz, 6.525 GHz	3.9 dBi, 4.3 dBi	0.016 in	0.4 mm	2	U.FL	Cable	100 mm	5.15 GHz, 5.925 GHz	5.85 GHz, 7.125 GHz	PCB Trace

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

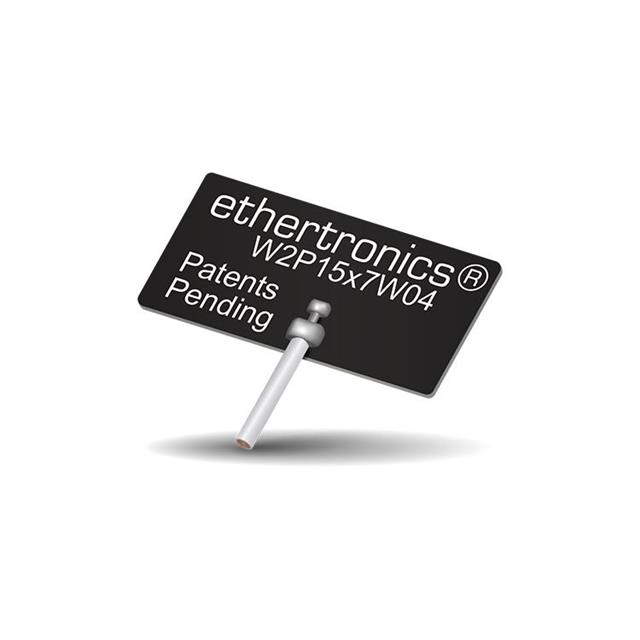

RF ANTENNA Wi-Fi PCB Trace U.FL Adhesive
