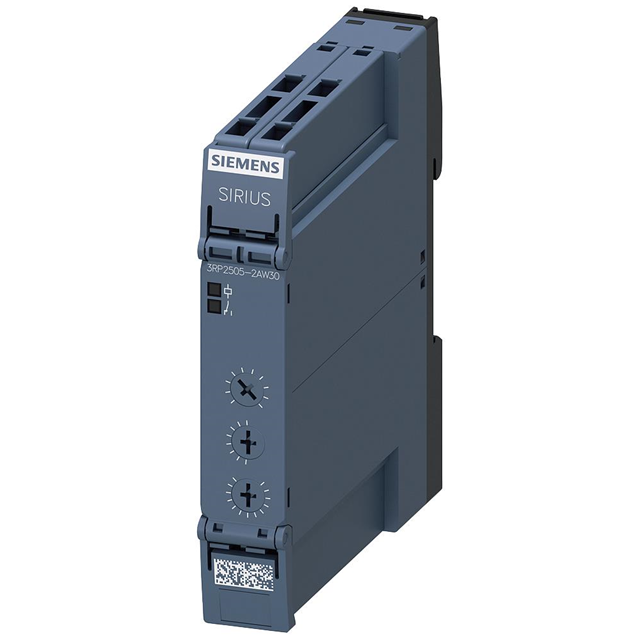

Specification	3RP25052AW30

Circuit	SPDT (1 Form C)
Contact Rating (Current)	3 A
Delay Time (Maximum)	100 Hrs
Delay Time (Minimum)	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Spring Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	12 VDC

3RP2505 Series

Part	Relay Type	Function	Circuit	Contact Rating (Current)	Timing Initiate Method	Timing Adjustment Method	Mounting Type	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Termination Style	Delay Time (Maximum)	Delay Time (Minimum)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Voltage Rating
Siemens 3RP25052BB30	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail	24 VAC	24 VDC	24 DC	Spring Terminal	100 Hrs	0.05 Sec
Siemens 3RP25051AW30	Mechanical Relay	Programmable (Multi-Function)	SPDT (1 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail				Screw Terminal	100 Hrs	0.05 Sec	240 VAC	12 VDC
Siemens 3RP25051CW30	Mechanical Relay	Programmable (Multi-Function)	SPST-NO (1 Form A)	1 A	Input Voltage	Screwdriver Slot	DIN Rail				Screw Terminal	100 Hrs	0.05 Sec	240 VAC	12 VDC	24VDC 250VAC
Siemens 3RP25051BT20	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail				Screw Terminal	100 Hrs	0.05 Sec	440 V	400 VAC
Siemens 3RP25052RW30	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail				Spring Terminal	100 Hrs	0.05 Sec	240 VAC	24 VAC
Siemens 3RP25052CW30	Mechanical Relay	Programmable (Multi-Function)	SPST-NO (1 Form A)	1 A	Input Voltage	Screwdriver Slot	DIN Rail				Spring Terminal	100 Hrs	0.05 Sec	240 VAC	12 VDC	24VDC 250VAC
Siemens 3RP25052BT20	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail				Spring Terminal	100 Hrs	0.05 Sec	440 V	400 VAC
Siemens 3RP25052AW30	Mechanical Relay	Programmable (Multi-Function)	SPDT (1 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail				Spring Terminal	100 Hrs	0.05 Sec	240 VAC	12 VDC
Siemens 3RP25052AB30	Mechanical Relay	Programmable (Multi-Function)	SPDT (1 Form C)	3 A	Input Voltage	Screwdriver Slot	DIN Rail	24 VAC	24 VDC	24 DC	Spring Terminal	100 Hrs	0.05 Sec
