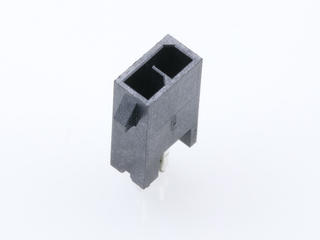

2068320222 - Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black, Tape and Reel

2068320222

Active
Molex

MICRO-FIT+ VERTICAL HEADER, THROUGH HOLE, 3.00MM PITCH, DUAL ROW, 2 CIRCUITS, 0.38ΜM GOLD (AU) PLATING, GLOW-WIRE CAPABLE, BLACK, TAPE AND REEL

Find alt
2068320222 - Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black, Tape and Reel

2068320222

Active
Molex

MICRO-FIT+ VERTICAL HEADER, THROUGH HOLE, 3.00MM PITCH, DUAL ROW, 2 CIRCUITS, 0.38ΜM GOLD (AU) PLATING, GLOW-WIRE CAPABLE, BLACK, TAPE AND REEL

Find alt

Description

General part information

206832 Series

Connector Header Through Hole 2 position 0.118" (3.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification2068320222
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating15 µin
Contact Length - Post0.125 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLocking Ramp
FeaturesBoard Guide, Glow Wire Compliant
Insulation ColorBlack
Insulation Height0.39 in
Insulation MaterialGlass Filled, Liquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.118 in
Row Spacing - Mating0.118 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating600 V
Voltage Rating (Type)DC
