206832 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 14POS 3MM

Part	Pitch - Mating	Contact Type	Fastening Type	Connector Type	Shrouding	Contact Finish - Mating	Number of Rows	Contact Finish - Post	Voltage Rating	Voltage Rating (Type)	Features	Number of Positions	Insulation Material	Current Rating (Per Contact)	Mounting Type	Termination	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Contact Length - Post	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Insulation Height	Style	Row Spacing - Mating	Contact Material	Applications	Current Rating	Current Rating	Contact Finish Thickness - Mating
Molex 2068321401	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Tin	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	14	Glass Filled Liquid Crystal Polymer (LCP)	12.5 A	Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy	Automotive General Purpose Medical Telecommunications
Molex 2068321802	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Gold	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	18	Glass Filled Liquid Crystal Polymer (LCP)		Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy		0 A	Varies by Wire Gauge	15 µin
Molex 2068321201	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Tin	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	12	Glass Filled Liquid Crystal Polymer (LCP)	12.5 A	Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy	Automotive General Purpose Medical Telecommunications
Molex 2068321223	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Gold	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	12	Glass Filled Liquid Crystal Polymer (LCP)	12.5 A	Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy				30 µin
Molex 2068320822	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Gold	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	8	Glass Filled Liquid Crystal Polymer (LCP)		Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy		0 A	Varies by Wire Gauge	15 µin
Molex 2068321823	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Gold	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	18	Glass Filled Liquid Crystal Polymer (LCP)	12.5 A	Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy				30 µin
Molex 2068322201	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Tin	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	22	Glass Filled Liquid Crystal Polymer (LCP)	12.5 A	Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy	Automotive General Purpose Medical Telecommunications
Molex 2068322223	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Gold	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	22	Glass Filled Liquid Crystal Polymer (LCP)	12.5 A	Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy				30 µin

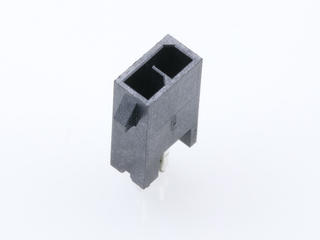

Molex 2068320221	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Tin	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	2	Glass Filled Liquid Crystal Polymer (LCP)		Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	105 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy		0 A	Varies by Wire Gauge
Molex 2068320803	0.118 in	Male Pin	Locking Ramp	Header	Shrouded - 4 Wall	Gold	2	Tin	600 V	DC	Board Guide Glow Wire Compliant	8	Glass Filled Liquid Crystal Polymer (LCP)		Through Hole	Solder	All	UL94 V-0	Black	0.125 in	-40 °C	125 °C	Square	0.39 in	Board Cable/Wire	0.118 in	Copper Alloy		12 A		30 µin
