73090-5
ActiveBANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 20 A, 70 VDC, NICKEL PLATED CONTACTS, GREEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73090-5 |
|---|---|
| Body Material | Polyoxymethylene (POM), Polypropylene (PP) |
| Color | Green |
| Contact Finish | Nickel |
| Contact Material | Brass, Steel |
| Features | Push Button Tab |
| Gender | Male |
| Insulation | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Solderless |
| Type | Banana Plug |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.39 | |
| 25 | $ 9.34 | |||
Description
General part information
73090 Series

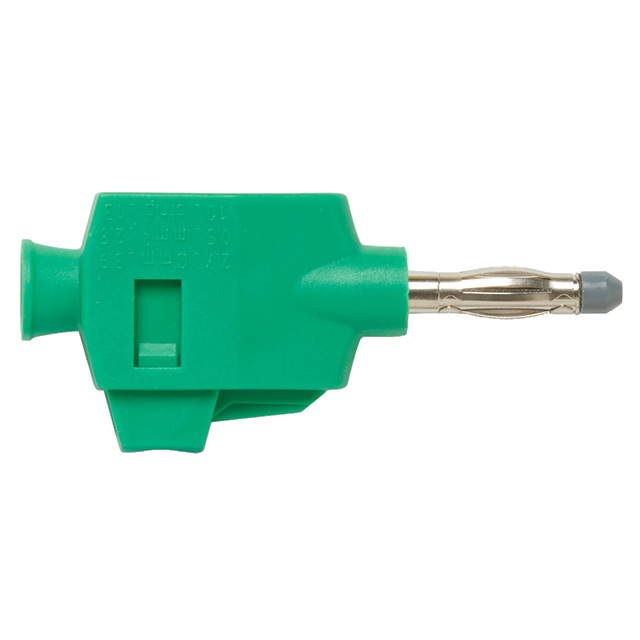

The 73090-5 from Pomona is a DIY green colour 4mm banana plug with quick wire attachment. Attaches wires quickly with the push-button tab for easy assembly or test lead repair. No soldering or set screws required. User can simply, push and hold the push tab, insert the stripped test lead wire (strip 4mm to 6mm of insulation) and release the push tab to secure the wire down. Great in low voltage applications where prototyping and quick wire attachments are required.
