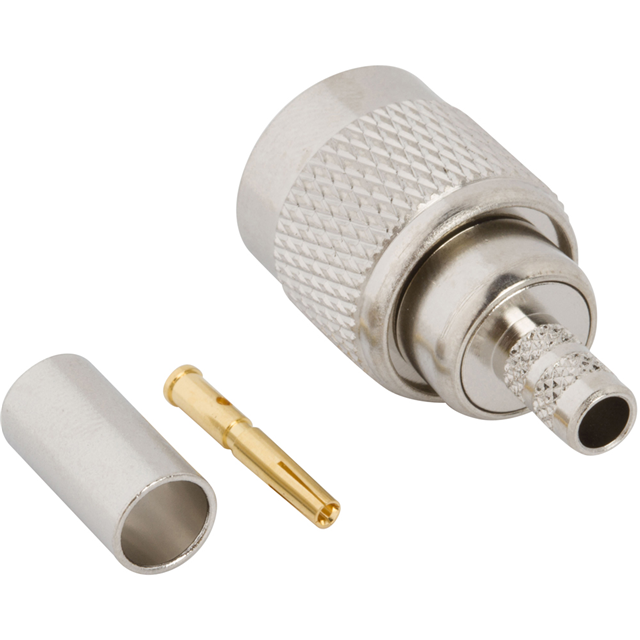

122410RP

Active

Amphenol RF

CONN RP-TNC PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-TNC PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122410RP

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 7807A, LMR-200
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Connector Style	Center Contact Material	Mounting Type	Housing Color	Voltage Rating	Number of Ports	Cable Group	Contact Termination	Body Material	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Includes	Center Contact Plating	Shield Termination	Mating Cycles	Dielectric Material	Impedance
Amphenol RF 122410RP	RP-TNC	Phosphor Bronze	Free Hanging (In-Line)	Silver	500 V	1	Belden 7807A LMR-200	Crimp	Brass	Nickel	Female Socket Plug	-65 ░C	165 °C	11 GHz	1 Connector 1 Contact 1 Ferrule	Gold	Crimp	500	Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
