112800

Active

Amphenol RF

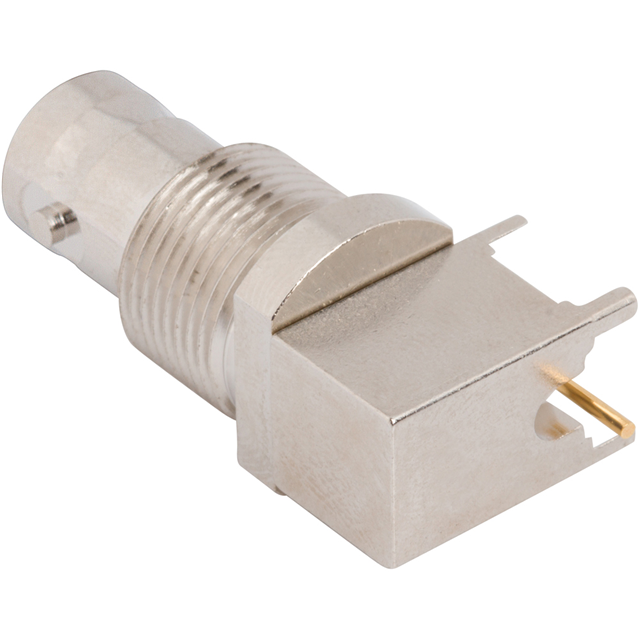

BNC RIGHT ANGLE PCB JACK SURFACE MOUNT BULKHEAD REAR MOUNT 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

BNC RIGHT ANGLE PCB JACK SURFACE MOUNT BULKHEAD REAR MOUNT 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	112800

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Mating Cycles	Mounting Type	Body Material	Voltage Rating	Frequency - Max [Max]	Impedance	Center Contact Plating	Number of Ports	Mounting Feature	Fastening Type	Body Finish	Center Contact Material	Connector Style	Housing Color	Dielectric Material	Contact Termination	Shield Termination	Connector Type
Amphenol RF 112800	500	Panel Mount Right Angle Through Hole	Brass	500 V	1 GHz	75 Ohms	Gold	1	Bulkhead - Front Side Nut	Bayonet Lock	Nickel	Beryllium Copper	BNC	Silver	Polytetrafluoroethylene (PTFE)	Solder	Solder	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
