B-533-V2525

Obsolete

Aearo Technologies LLC, a 3M company

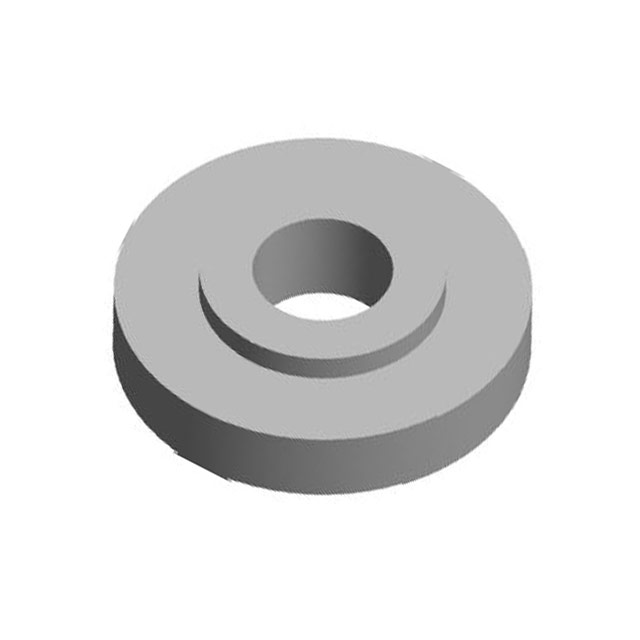

BUSHING 3/4" THERMOPLASTIC

Search across all available documentation for this part.

Obsolete

Aearo Technologies LLC, a 3M company

BUSHING 3/4" THERMOPLASTIC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Shoulder Washer 0.325" (8.26mm) Thick Thermoplastic

Technical documentation and resources

Parameters and characteristics commom to parts in this series

BUSHING 3/4" THERMOPLASTIC

Part	Length - Below Head	Length - Below Head	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Thickness - Overall	Thickness - Overall	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material
Aearo Technologies LLC, a 3M company B-533-V2375	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-2	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-1	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-V2750	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-3	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-V2325	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-V2775	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-V2590	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-V2550	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
Aearo Technologies LLC, a 3M company B-533-V2525	2.16 mm	0.085 in	19.05 mm	0.75 in	0.325 in	8.26 mm	32.13 mm	1.265 in	Thermoplastic
