H6B-TBFS-M25
ActiveTE Connectivity AMP Connectors
T1730062125-000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H6B-TBFS-M25
ActiveTE Connectivity AMP Connectors
T1730062125-000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H6B-TBFS-M25 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H6B |
| Size / Dimension [x] | 61.8 mm |
| Size / Dimension [x] | 2.433 in |
| Size / Dimension [y] | 1.772 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 62.5 mm |
| Size / Dimension [z] | 2.461 in |
| Style | Top Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.47 | |
| 10 | $ 8.56 | |||
| 25 | $ 8.33 | |||
| 50 | $ 8.02 | |||
| 100 | $ 7.97 | |||
T1730062125 Series
T1730062125-000
| Part | Style | Housing Color | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Thread Size | Size | Housing Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Connector Type | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H6B-TBFS-M25 | Top Entry | Gray | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Powder Coated | M25 | H6B | Aluminum Alloy, Die Cast | 61.8 mm | 1.772 " | 2.433 in | 62.5 mm | 45 mm | 2.461 in | Hood | Locking Clip (1) on Hood |
Description
General part information
T1730062125 Series

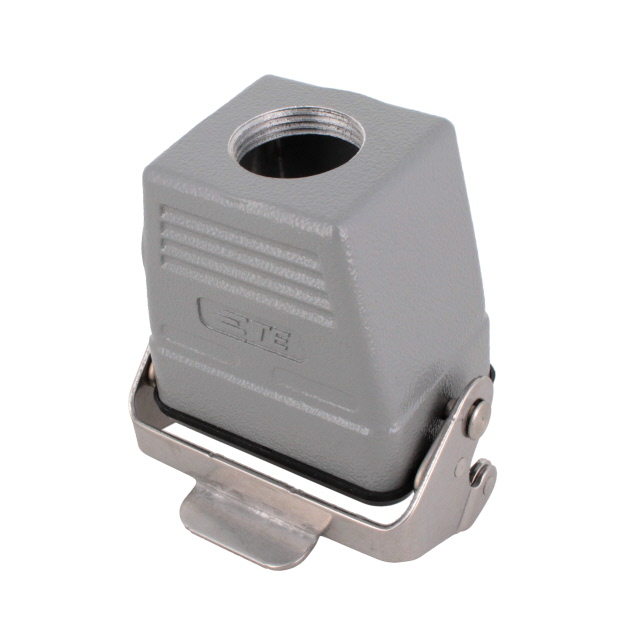

Hood Connector Top Entry M25 H6B IP65 - Dust Tight, Water Resistant
