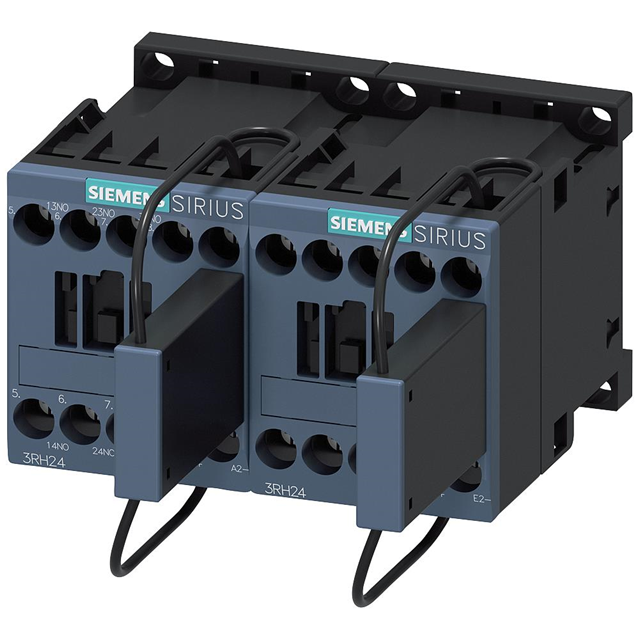

3RH24311LW800LA0

Active

Siemens

LATCHED CONT RELAY FOR RAILWAY A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS 2 Control Relay Specification and Catalog Datasheet

3RH24311LW800LA0

Active

Siemens

LATCHED CONT RELAY FOR RAILWAY A

Deep-Dive with AI

DocumentsSIRIUS 2 Control Relay Specification and Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RH24311LW800LA0

Coil Power	13 W
Coil Voltage	32 VDC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	10 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	22.4 VDC
Operate Time	130 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Release Time	20 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

3RH24311 Series

Part	Operate Time	Features	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Power	Switching Voltage	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Release Time	Contact Form
Siemens 3RH24311UW80	100 ms	Auxiliary Contacts	32 VDC	-25 °C	60 °C	Screw Terminal	4 W	690 VAC	10 A	25.6 VDC	Chassis Mount DIN Rail	13 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311BB40	100 ms	Auxiliary Contacts	24 VDC	-25 °C	60 °C	Screw Terminal	4 W	690 VAC	10 A	19.2 VDC	Chassis Mount DIN Rail	13 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311AB00	33 ms	Auxiliary Contacts	24 VAC	-25 °C	60 °C	Screw Terminal	37 VA	690 VAC	10 A		Chassis Mount DIN Rail	15 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311BG40	100 ms	Auxiliary Contacts	125 VDC	-25 °C	60 °C	Screw Terminal	4 W	690 VAC	10 A	100 VDC	Chassis Mount DIN Rail	13 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311AP00	33 ms	Auxiliary Contacts	230 VAC	-25 °C	60 °C	Screw Terminal	37 VA	690 VAC	10 A	195.5 VAC	Chassis Mount DIN Rail	15 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311AK60	33 ms	Auxiliary Contacts	120 VAC	-25 °C	60 °C	Screw Terminal	37 VA	690 VAC	10 A	102 VAC	Chassis Mount DIN Rail	15 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311AF00	33 ms	Auxiliary Contacts	110 VAC/DC	-25 °C	60 °C	Screw Terminal	37 VA	690 VAC	10 A	93.5 VAC	Chassis Mount DIN Rail	15 ms	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH24311LW800LA0	130 ms	Auxiliary Contacts	32 VDC	-40 °C	70 °C	Screw Terminal	13 W	690 VAC	10 A	22.4 VDC	Chassis Mount DIN Rail	20 ms	3PST-NO (3 Form A)
Siemens 3RH24311AP60	33 ms	Auxiliary Contacts	240 VAC	-25 °C	60 °C	Screw Terminal	37 VA	690 VAC	10 A	204 VAC	Chassis Mount DIN Rail	15 ms	4PST-3NO/1NC (3 Form A 1 Form B)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 443.40
