864-AG11D-ESL

Active

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 64POS GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 64POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	864-AG11D-ESL

Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	64
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	22.86 mm
Type	DIP
Type	0.9 in

CONN IC DIP SOCKET 64POS GOLD

Part	Features	Housing Material	Contact Resistance	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Type	Type	Type	Contact Finish Thickness - Mating	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Material - Mating	Mounting Type	Number of Positions or Pins (Grid)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Post	Pitch - Post
TE Connectivity AMP Connectors 864-AG11D-ESL	Open Frame	Polyester	10 mOhm	0.1 in	2.54 mm	Solder	Gold	22.86 mm	DIP	0.9 in	Flash	UL94 V-0	3.18 mm	0.125 in	3 A	Copper Alloy	Through Hole	64	105 ░C	-55 °C	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

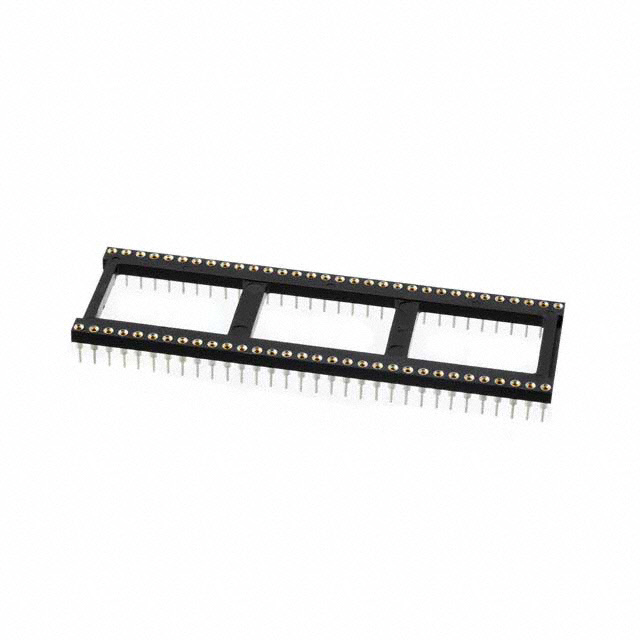

64 (2 x 32) Pos DIP, 0.9" (22.86mm) Row Spacing Socket Gold Through Hole
