EVAL2QR2280G1TOBO1

Active

Infineon Technologies

20W 5V SMPS EVALUATION BOARD WITH QUASI-RESONANT COOLSET ICE2QR2280G-1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ICE2QRxx65/80x Design Guide

EVAL2QR2280G1TOBO1

Active

Infineon Technologies

20W 5V SMPS EVALUATION BOARD WITH QUASI-RESONANT COOLSET ICE2QR2280G-1

Deep-Dive with AI

DocumentsDatasheet ICE2QRxx65/80x Design Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL2QR2280G1TOBO1

Board Type	Fully Populated
Current - Output	4 A
Frequency - Switching	65 kHz
Main Purpose	Primary Side, AC/DC
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	20 W
Regulator Topology	Flyback
Supplied Contents	Board(s)
Utilized IC / Part	ICE2QR2280G-1
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output	5 V

EVAL2QR2280 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Outputs and Type	Outputs and Type	Regulator Topology	Supplied Contents	Current - Output	Main Purpose	Utilized IC / Part	Power - Output	Frequency - Switching	Voltage - Output
Infineon Technologies EVAL2QR2280G1TOBO1	85 VAC	265 VAC	Fully Populated	Isolated	1	Flyback	Board(s)	4 A	AC/DC Primary Side	ICE2QR2280G-1	20 W	65 kHz	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 144.00

Description

General part information

EVAL2QR2280 Series

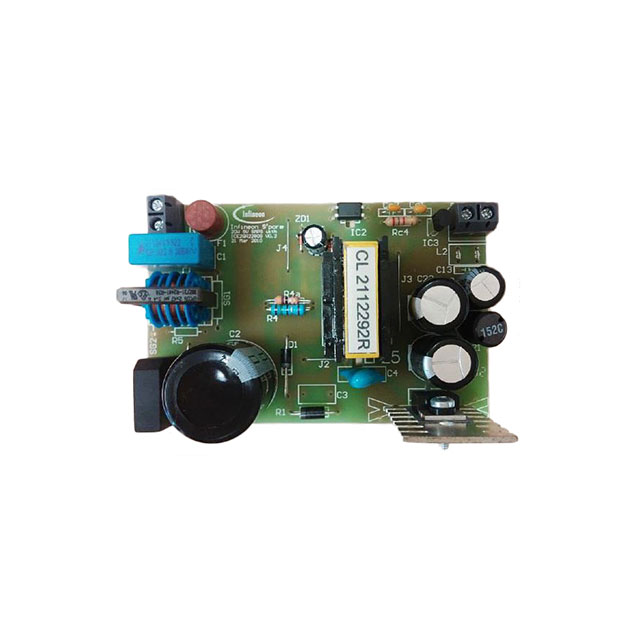

20 W switching mode power supply evaluation board designed in a quasi resonant flyback converter topology usingICE2QR2280G-1Quasi-resonant CoolSET™ . With the CoolMOS™ integrated in this IC, it greatly simplifies the design and layout of the PCB. Due to valley switching, the turn on voltage is reduced and this offers higher conversion efficiency comparing to hard-switching flyback converter. With the DCM mode control, the reverse recovery problem of secondary rectify diode is relieved. And for its natural frequency jittering with line voltage, the EMI performance is better. Infineon’s digital frequency reduction technology enables a quasi-resonant operation till very low load.
