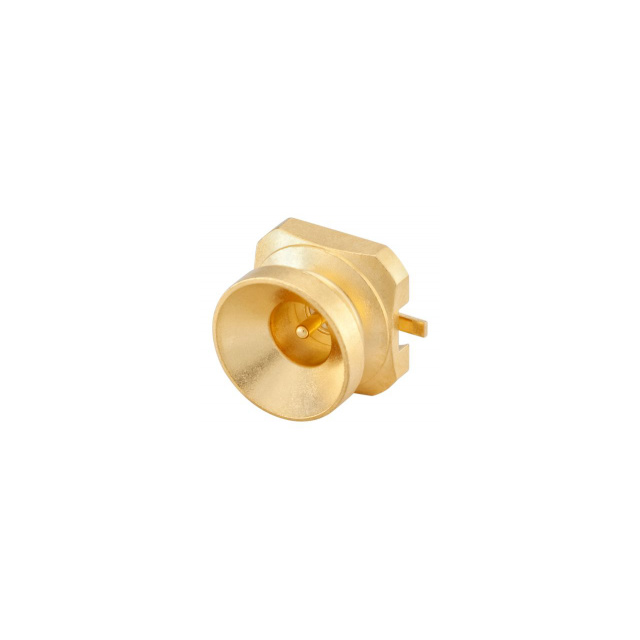

17S144-40ML5

Active

Rosenberger

1 SMP HEADER 6GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Search across all available documentation for this part.

Active

Rosenberger

1 SMP HEADER 6GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Ports	Body Material	Frequency - Max [Max]	Housing Color	Impedance	Body Finish	Connector Style	Center Contact Material	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Dielectric Material	Center Contact Plating	Contact Termination	Voltage Rating	Shield Termination	Fastening Type
Rosenberger 17S144-40ML5	Catcher's Mitt	1	Brass	6000 MHz	Gold	50 Ohms	Gold	Longwipe SMP	Brass	Surface Mount	Male Pin Plug	155 °C	-65 ░C	1000	Liquid Crystal Polymer (LCP)	Gold	Solder	335 V	Solder	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP, Longwipe Connector Plug, Male Pin 50 Ohms Surface Mount Solder
