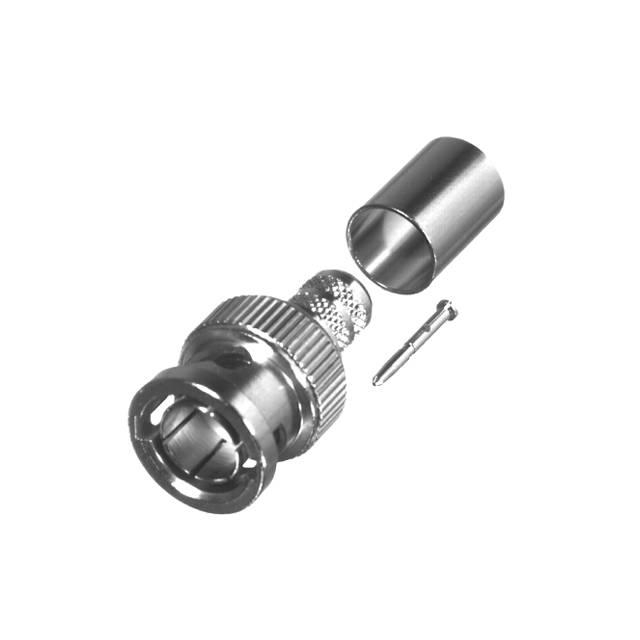

RFB-1707-G

Active

RF Industries

BNC MALE CRIMP; 75 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC MALE CRIMP; 75 OHMS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFB-1707-G	RFB-1707 Series

Body Finish	Nickel	Nickel, Silver
Body Material	Brass	Brass
Cable Group	8281F, 9231, 8281B, Belden 8281	179A, 187, 187A, 179, RG-161, 8281F, 9231, 8281B, Belden 8281, 8261, 9212, RG-11, Belden 8238
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	3 - 4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

BNC MALE CRIMP; 75 OHMS

Part	Fastening Type	Center Contact Plating	Contact Termination	Mounting Type	Housing Color	Body Finish	Number of Ports	Connector Type	Center Contact Material	Impedance	Voltage Rating	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Dielectric Material	Frequency - Max [Max]	Shield Termination	Body Material
RF Industries RFB-1707-S	Bayonet Lock	Gold	Crimp, Solder	Free Hanging (In-Line)	Silver	Nickel	1	Male Pin, Plug	Brass	75 Ohms	500 V	BNC	-65 ░C	85 °C	179, 179A, 187, 187A, RG-161	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	Brass
RF Industries RFB-1707-G	Bayonet Lock	Gold	Crimp	Free Hanging (In-Line)	Silver	Nickel	1	Male Pin, Plug	Brass	50 Ohms	500 V	BNC	-65 ░C	85 °C	8281B, 8281F, 9231, Belden 8281	Polyoxymethylene (POM) Acetal	4 GHz	Crimp	Brass
RF Industries RFB-1707-R1	Bayonet Lock	Gold	Solder	Free Hanging (In-Line)	Silver	Nickel	1	Male Pin, Plug	Brass	75 Ohms	500 V	BNC	-65 ░C	165 °C	8261, 9212, Belden 8238, RG-11	Polytetrafluoroethylene (PTFE)	3 GHz	Crimp	Brass
RF Industries RFB-1707-2D	Bayonet Lock	Gold	Crimp	Free Hanging (In-Line)	Silver	Silver	1	Male Pin, Plug	Brass	75 Ohms	500 V	BNC	-65 ░C	85 °C		Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.10

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
