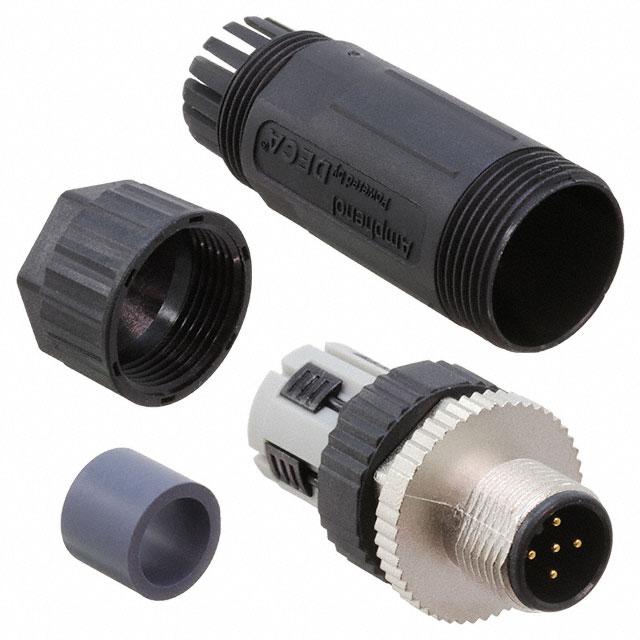

M12A-05BMME-SL8001
ActiveAmphenol LTW
SENSOR CONNECTOR, M12, PLUG, 5 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M12A-05BMME-SL8001
ActiveAmphenol LTW
SENSOR CONNECTOR, M12, PLUG, 5 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-05BMME-SL8001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Current Rating (Amps) | 4 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Clamp |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12A-05BMME Series
5 Position Circular Connector Plug, Male Pins Clamp
